Introduction

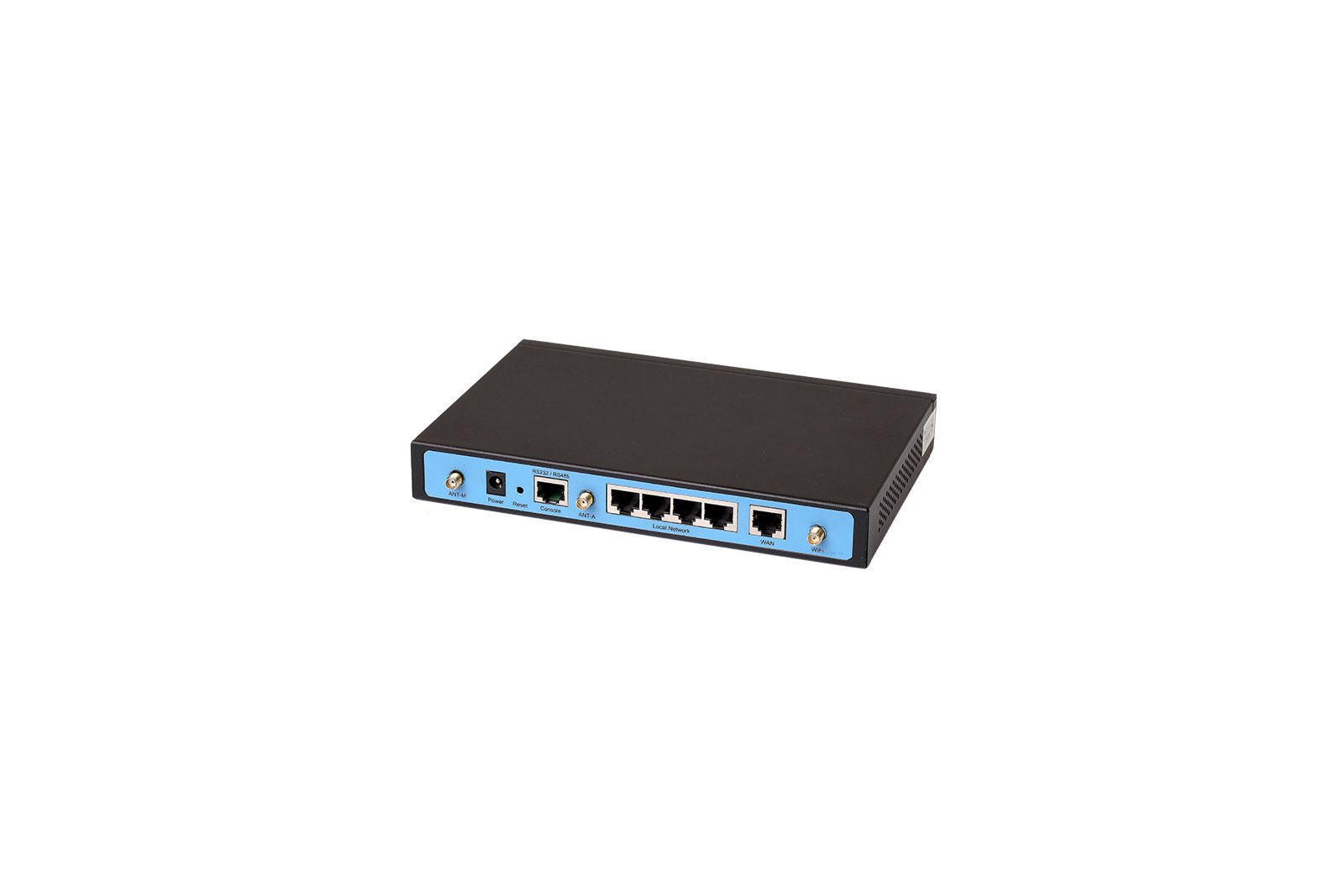

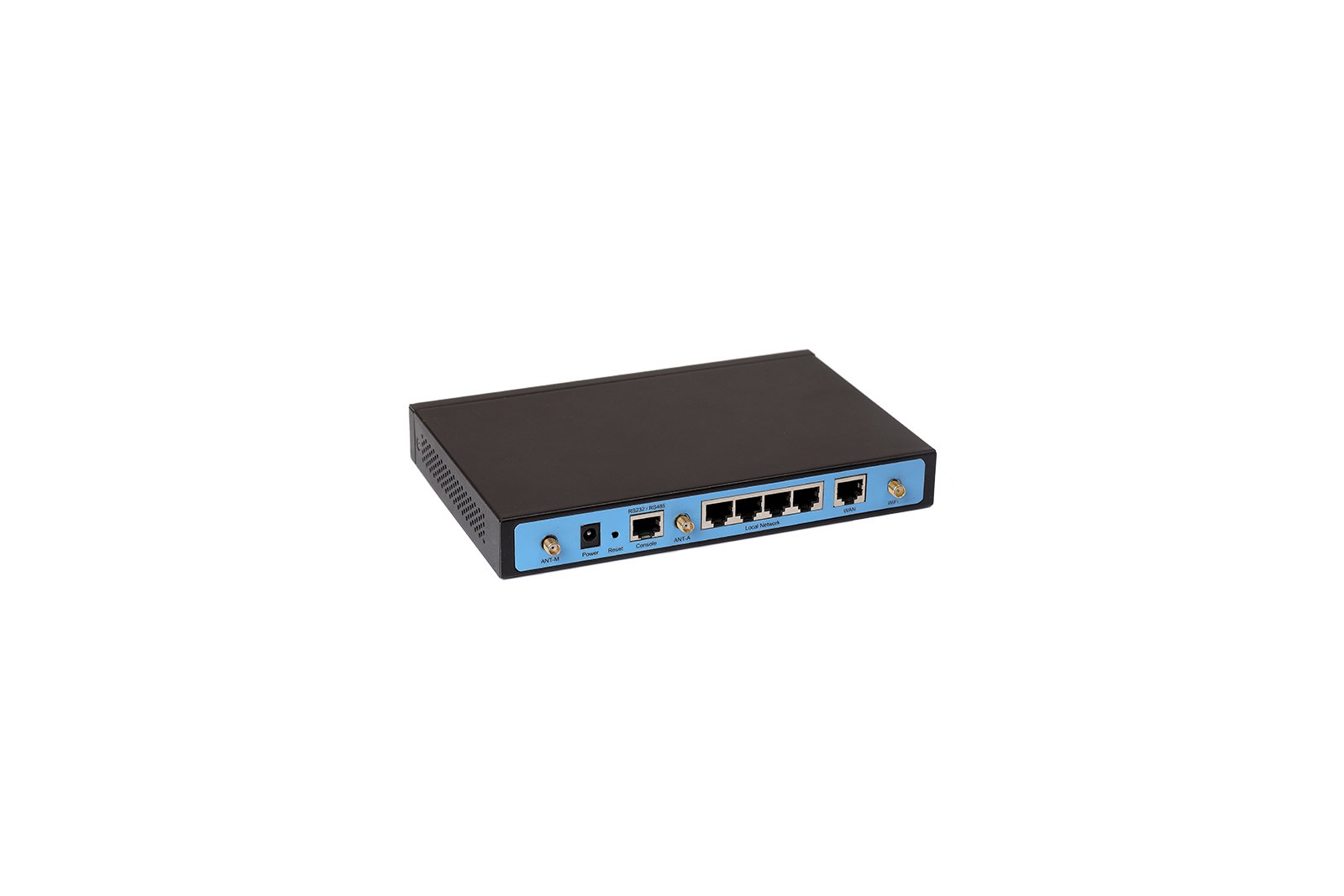

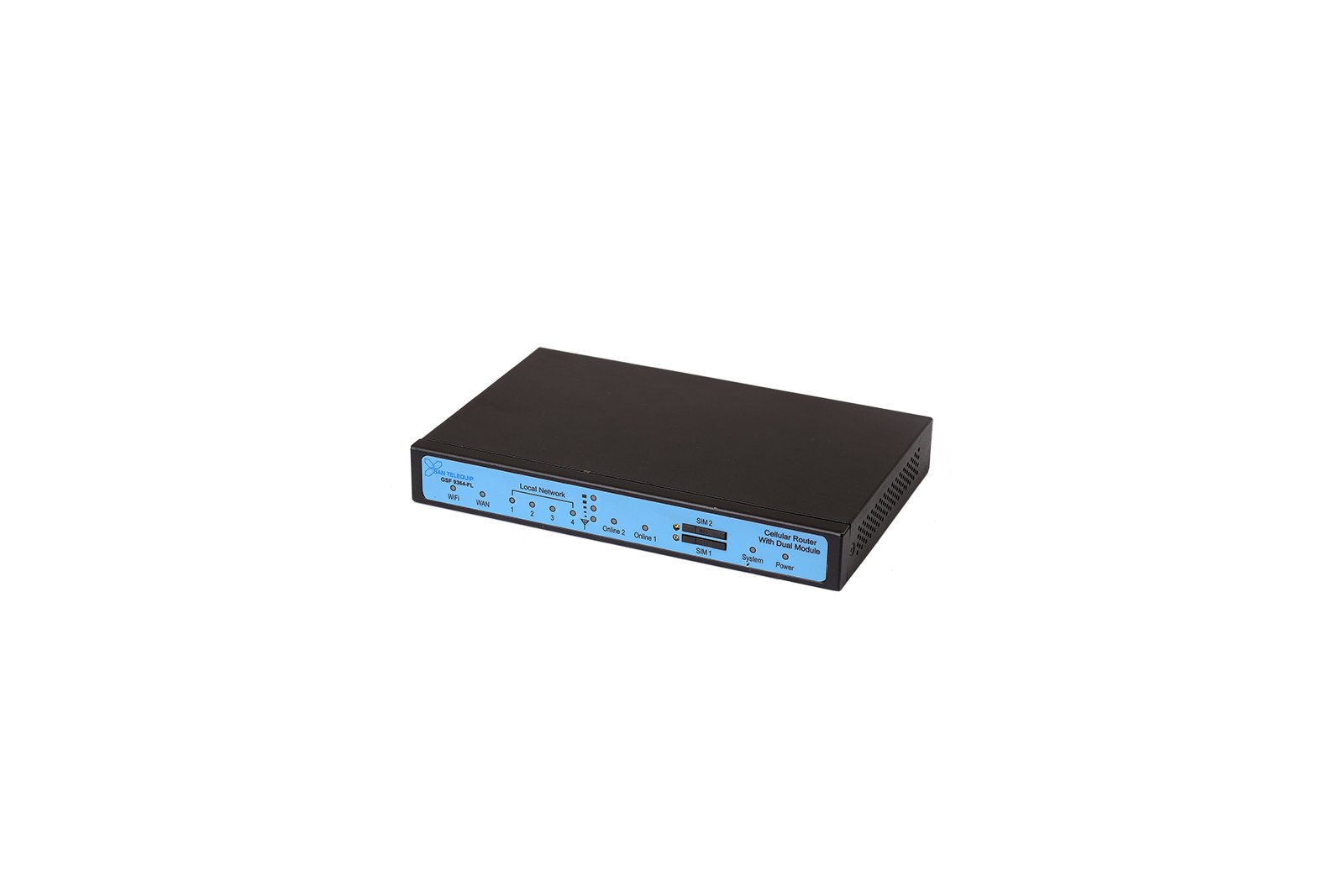

The GSF 9364 is a cellular gateway designed for robust data transmission over public LTE and WCDMA networks. Its core function is to conveniently and transparently connect existing serial (RS232/RS485/RS422) and Ethernet devices to a cellular network, enabling remote connectivity and data access. This capability eliminates the need for costly fixed-line infrastructure and provides a flexible solution for a wide range of deployments.
Engineered for industrial applications, the gateway utilizes a high-powered, industrial 32-bit CPU and an embedded real-time operating system to ensure stability and reliable performance. It has been successfully deployed across numerous M2M fields, including intelligent transportation, smart grid, industrial automation, telemetry, finance, POS, water supply, environment protection, post, and weather. The gateway's design incorporates a range of features for high performance and reliability, making it suitable for these critical applications.
Standard and Band:
LTE FDD: 2600/2100/1800/900/800MHz (Band 1/3/7/8/20); 700/1700/2100MHz (Band 2/4/5/13/17/25 optional)
LTE TDD: 2600/1900/2300MHz (Band 38/39/40/41); 800/1400/1800 MHz (Band 27/61/62 Optional)
DC-HSPA+/HSPA+/WCDMA/UMTS: 2100/1900/900/850/800 MHz (Band 1, 2, 5, 6, 8)
EDGE/GPRS/GSM: 900/1800/1900MHz Bandwidth:
FDD LTE: 100Mbps (DL), 50Mbps (UL)
TDD LTE: 61Mbps (DL), 18Mbps (UL)
TX power: <24 dBm
RX sensitivity: < -109 dBm
Encryption: WEP, WPA, WPA2
Tx Power: 20dBm (11n), 24 dBm (11g), 26 dBm (11b)
RX sensitivity: <-72dBm@54Mpbs
FLASH: 16MB (Extendable to 64MB)
DDR2: 128MB (Extendable to 256MB)
Serial: 1x RS232 (or RS485/RS422) port (15KV ESD protection)
Baud rate: 2400 to 115200 bps
Data bits: 5, 6, 7, 8
Stop bits: 1, 1.5 (optional), 2
Parity: None, Even, Odd, (space, mark) (optional)
Antenna: Double Cellular & 1 WiFi, characteristic impedance 50 ohm
Reset: Restore the Gateway to its original factory default settings
Power range: DC 5 to 36V
Protection: Reverse-voltage and Overvoltage protection
Power consumption:
Standby: 290 to 360 mA@12VDC
Working: 340 to 610 mA@12VDC
Timing shutdown: 2.57 to 4.2 mA@12DVC
Ingress Protection: IP30
Dimensions: 207x135x28 mm
Weight: 810g
Storage Temperature: -40 to +85ºC
Operating Humidity: 95% non-condensing
MTBF: 50,000 hours
