Introduction

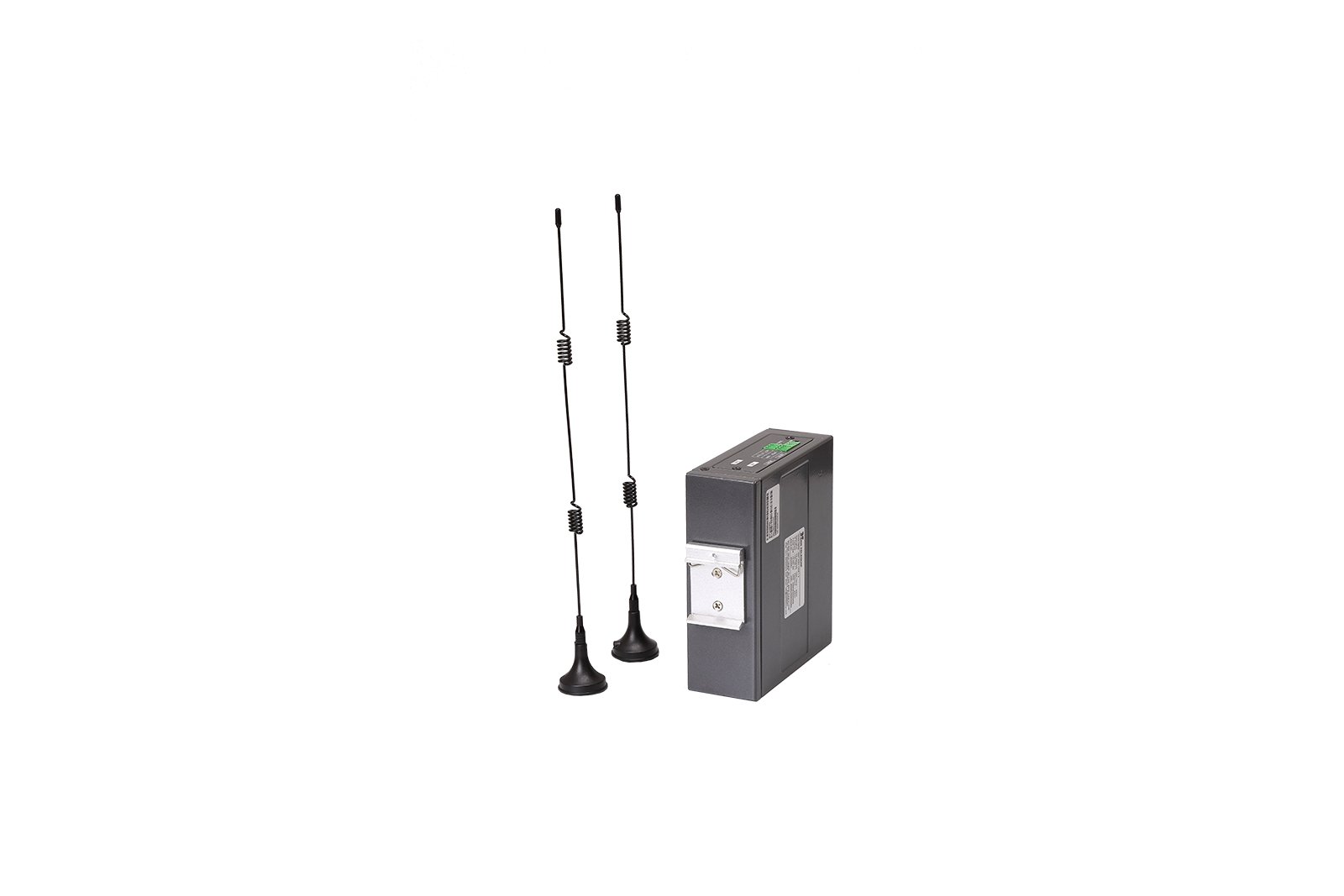

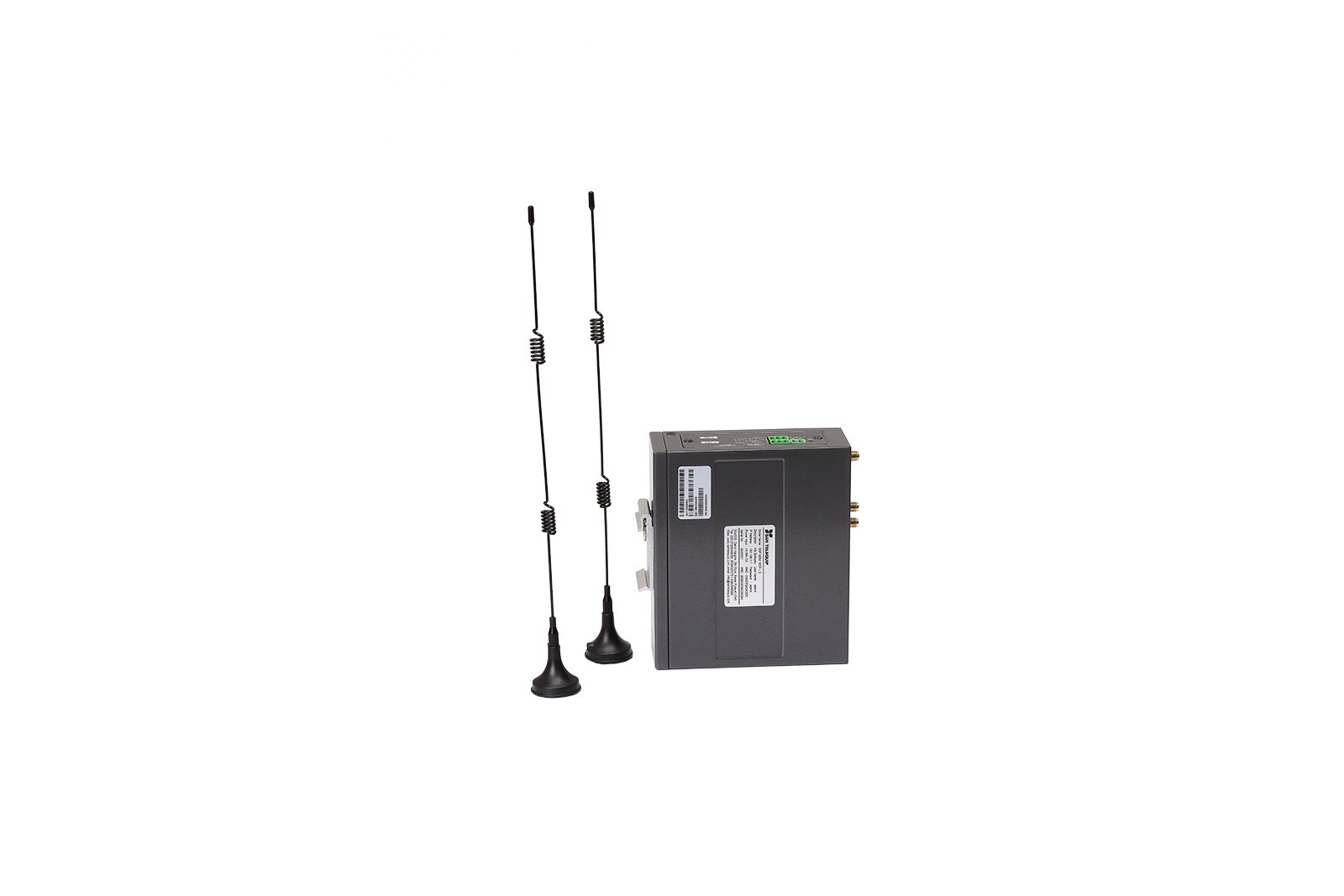

The GSF M2M 200R is an intelligent Giga gateway designed for demanding industrial environments where both faultless connectivity and high-speed local networking are required. It delivers secure, reliable, real-time remote access for SCADA, distribution management, and advanced metering infrastructure. Its feature set includes software-defined multi-carrier networking, Dual SIM models for carrier redundancy, and flexible global 2.5G/3G/HSPA+/LTE cellular options.
This model is purpose-built for harsh conditions, featuring a rugged IP30 metal housing, a wide operating temperature range, and versatile DIN-rail, wall, or desktop mounting options. In addition to its Gigabit Ethernet ports, it supports high-speed wireless connections, with 802.11ac offered as a key feature. The gateway's performance is driven by an industrial-grade 32-bit communication processor, ensuring it can manage high-speed routing and data transmission without compromising reliability. These capabilities make it a superior choice for modern industrial networks that handle significant data loads.
Memory: 16MB FLASH, 128MB DDR3
Cellular Bandwidth (FDD LTE): 100Mbps Downlink, 50Mbps Uplink
Cellular Sensitivity: <-93.3dBm
WiFi Bandwidth: Up to 150Mbps (802.11n)
Serial Console: 1 x RS232/RS485 (RJ45)
Antennas: 3 x SMA (WiFi and Double-cellular)
I/O: 2 x Digital Inputs, 1 x Digital Output, 1 x Relay
Memory: Micro SD Card Slot
Power: 2 Pin Terminal Block
Power Supply: 12V/1.5A (standard), 8W
Power Consumption: 300mA @ 12V (Communication)
Protections: Reverse Polarity, Over Voltage Protection, 2KV Surge Protection
Weight: 520g
Housing: Metal
Ingress Protection: IP30
Installation: 34.6 mm Din-Rail, wall mounting, or desktop
Storage Temperature: -40°C to 85°C
Humidity: 90% RH @ 60°C
