- IESG 104-2S A
Key Features & Benefits
1. Hybrid Gigabit Port Configuration for Extended Reach
2. Exceptional Environmental and Temperature Hardiness
3. High-Performance Switching Architecture
4. Redundant and Robust Power Protection
5. Comprehensive Electromagnetic and Transient Immunity
6. Simplified Plug-and-Play Management Features
7. Flexible Installation Options
Key Features & Benefits
- Hybrid Gigabit Port Configuration for Extended Reach
- Exceptional Environmental and Temperature Hardiness
- High-Performance Switching Architecture
- Redundant and Robust Power Protection
- Comprehensive Electromagnetic and Transient Immunity
- Simplified Plug-and-Play Management Features
- Flexible Installation Options
Introduction
The IESG 104-2S A is a versatile unmanaged industrial switch designed to be the ideal solution for extending Ethernet over long distances. It features four 10/100/1000Base-TX copper ports for connecting local devices and two 1000Base-X SFP slots for high-speed fiber uplinks. Its support for 10K jumbo frames makes it particularly effective for high-throughput applications, such as streaming high-definition video from IP cameras, by reducing processing overhead on the network.
Built for mission-critical reliability, the IESG 104-2S A incorporates a suite of industrial-grade features. Its wide-range redundant power inputs protect against power supply failures, while an overload current resettable fuse safeguards the device from damaging electrical events. Housed in a durable IP40 aluminum alloy enclosure, this switch is engineered to provide dependable, long-term service in the most demanding industrial environments.
Back Bandwidth: 12Gbps
MAC Address Size: 1024
Packet Buffer Size: 1 Mbit
Time Delay: <10us
Max Frame Size: 10Kbytes
Fiber Ports: 2 x SFP (1.25G)
FL/A: ON = Fiber Connected; Active = Data Transmitting
TL/A: ON = Copper Connected; Active = Data Transmitting
Fiber (SFP): MMF up to 2km; SMF up to 20/40/80/100/120km
Protection: Overload Current, Reverse Polarity
Connector: Terminal Block

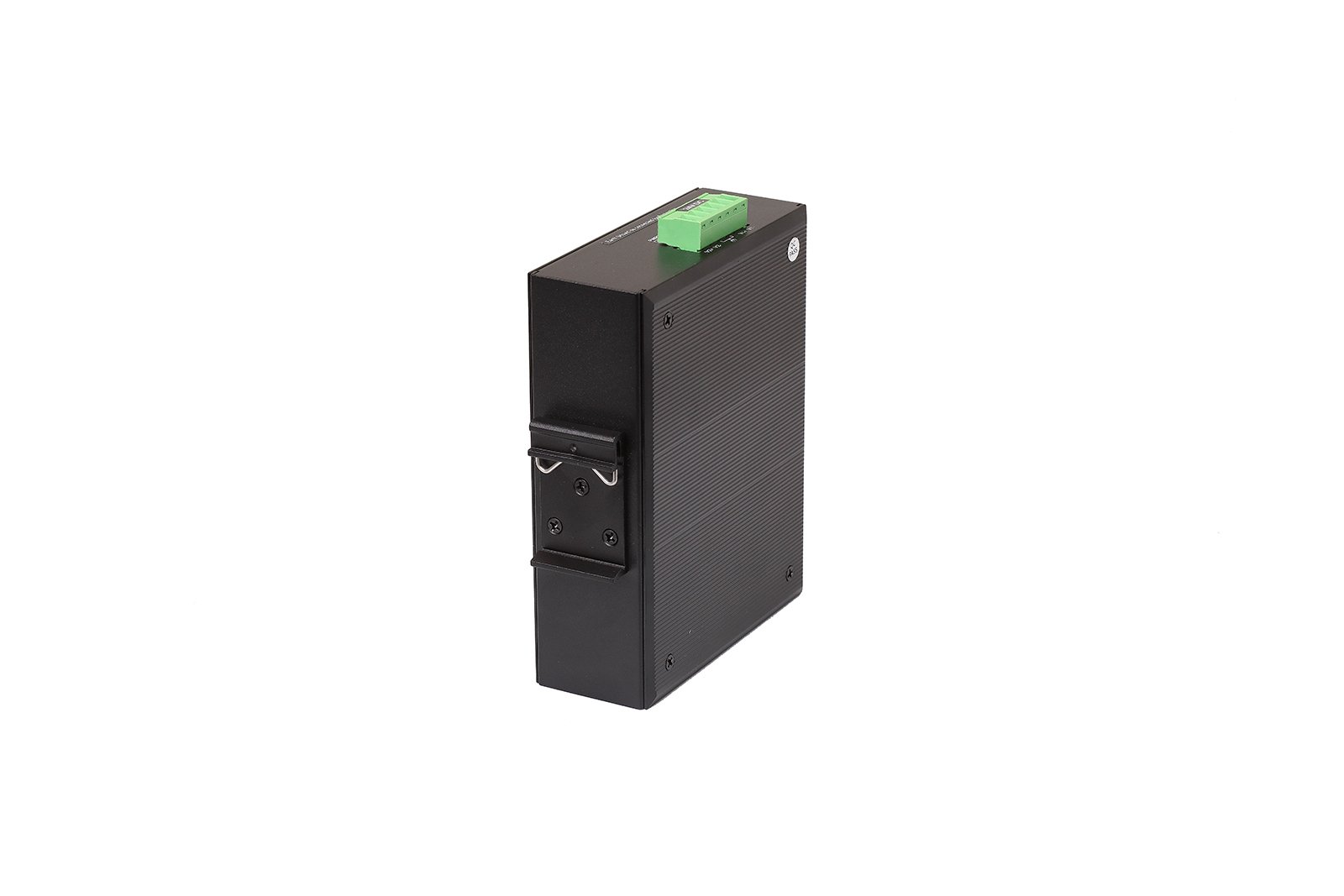

Aluminum Alloy Installation: DIN-rail mounting, wall mounting (with optional kit)
Dimensions: 138 x 107 x 45 mm
Weight: 0.48 kg
Storage Temperature: -40˚C to +95˚C
Relative Humidity: 5-95% (non-condensing)
