Key Features & Benefits
1. Wide Operating Temperature (-40°C to 85°C)
2. Redundant Power Input (12 - 58VDC)
3. Industrial-Grade Protection (ESD, Surge, Reverse Polarity)
4. Full duplex and Half duplex Back Pressure
5. Robust Mechanical Design (IP40 Aluminum Enclosure & Fan-less
6. Flexible Installation (DIN-rail, Wall-mounted)
PRODUCT CATEGORIES
Key Features & Benefits
- Extreme Environmental and Temperature Tolerance
- High Level of Industrial Protection and Durability with IP40 Protection
- Flexible and High-Capacity Port Configurations
- High-Performance and Non-Blocking Switching Architecture
- Versatile Power Management and Optional Redundancy
- Support for Extensive Long-Haul Fiber Connectivity
- Auto-Configuration and Standard Compliance for Ease of Integration easy Integration
PRODUCT CATEGORIES
Introduction

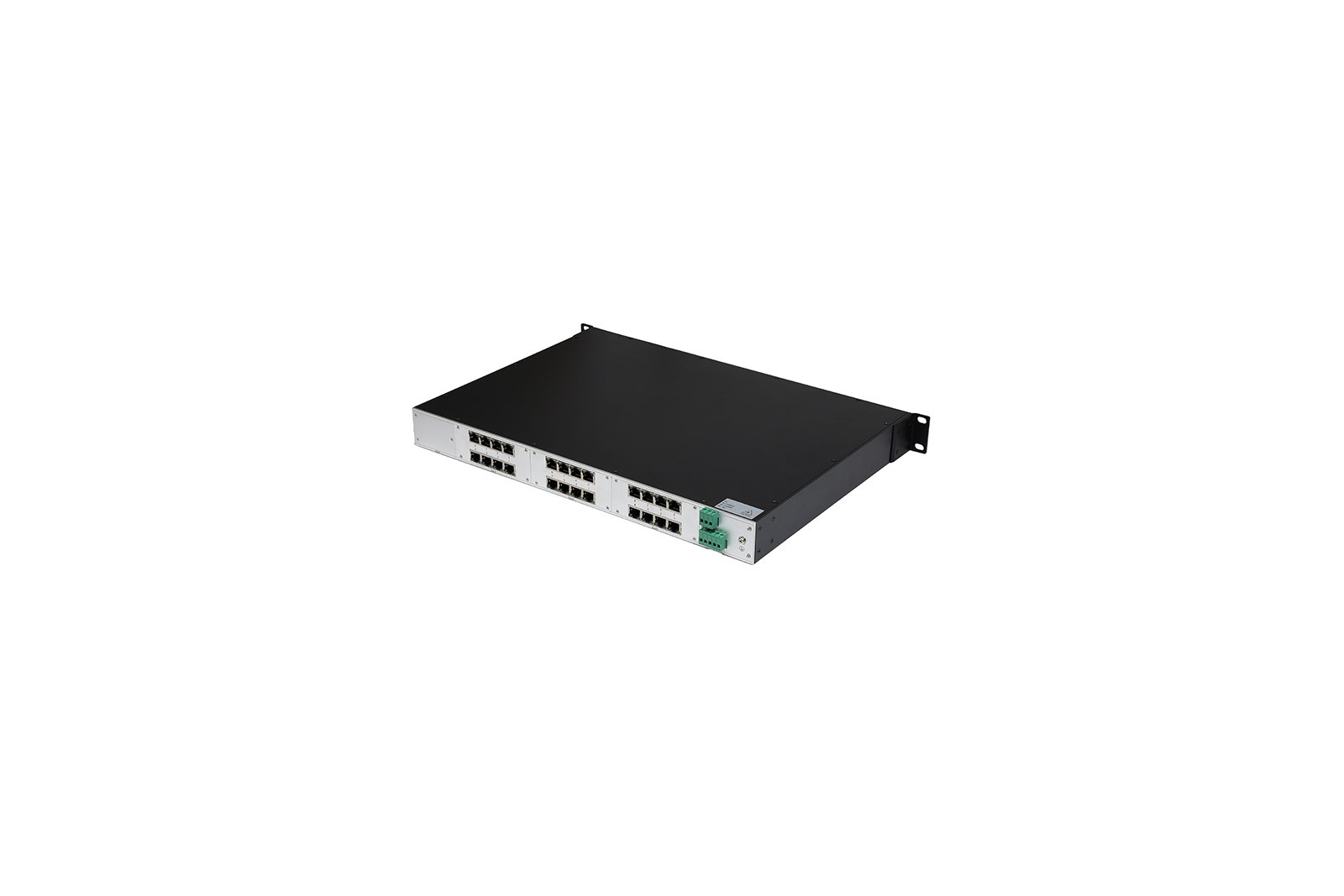

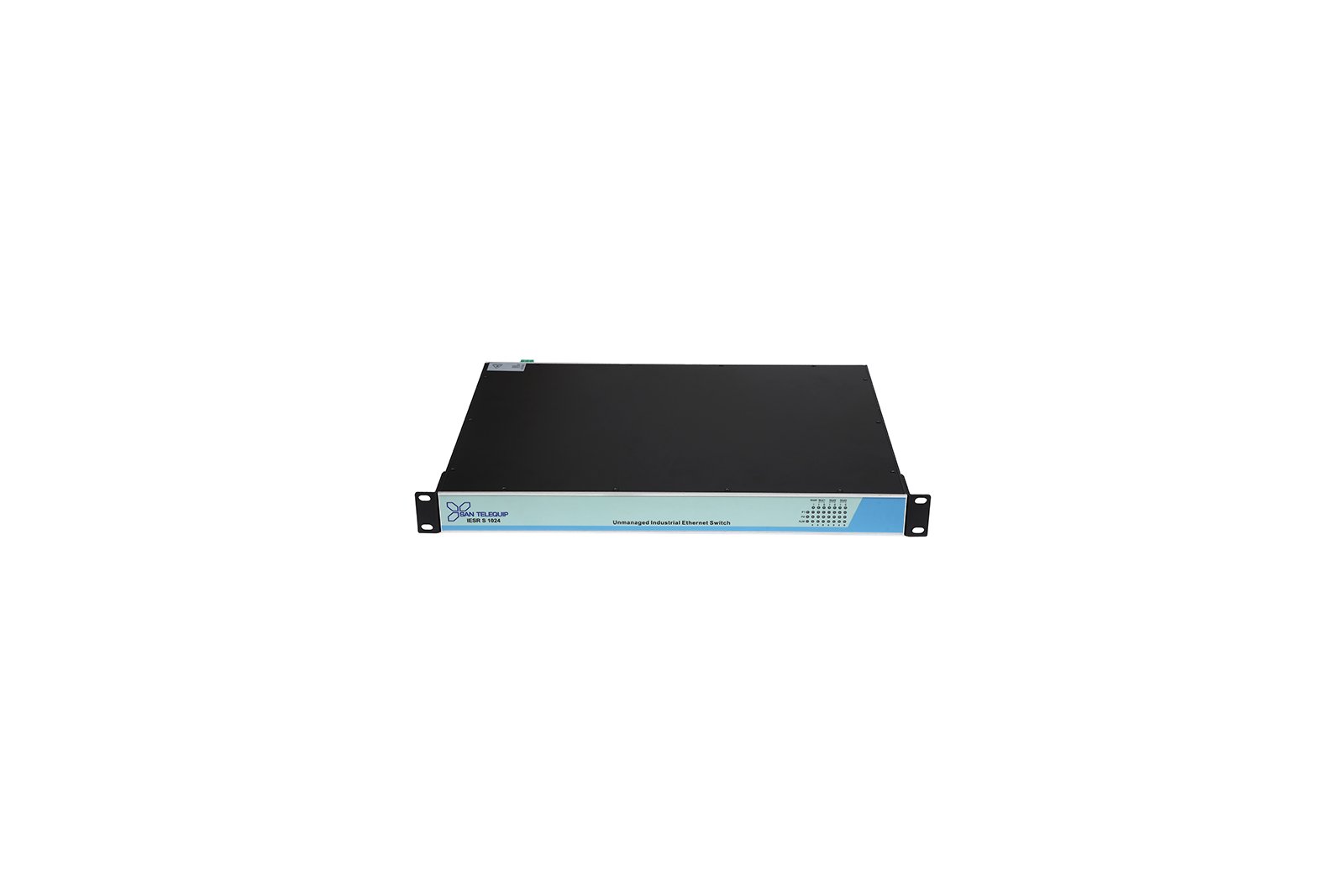

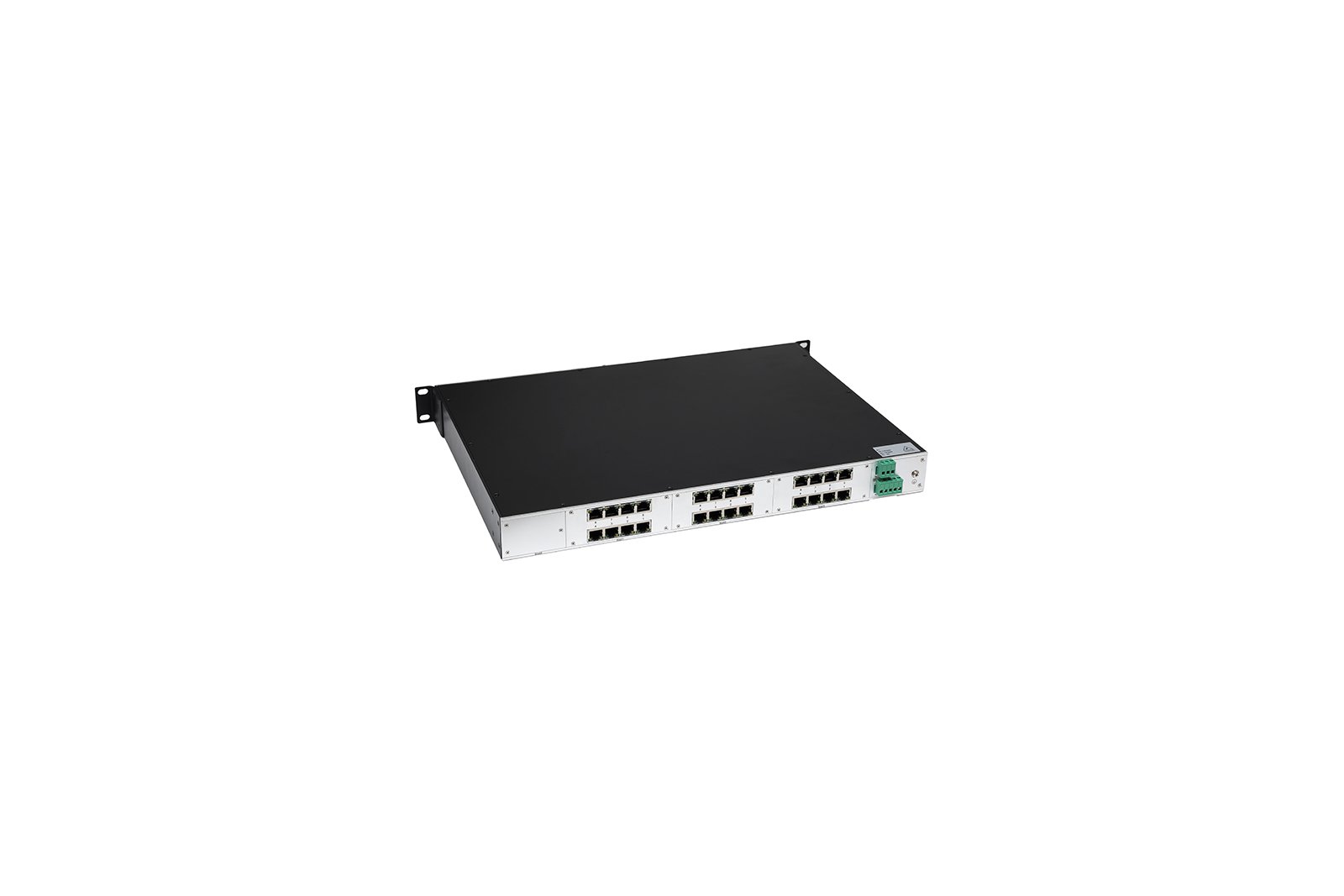

The IESR S 10XX series is a family of unmanaged industrial Ethernet switches designed to provide a stable and secure networking backbone for critical infrastructure. These switches are built to withstand the rigors of industrial settings, ensuring consistent data transmission where standard commercial-grade hardware would fail.
With a focus on durability and performance, the series is an ideal solution for a range of applications, including industrial automation, intelligent transportation systems (ITS), and high-demand video transmission. Its core value proposition is the delivery of a safe and reliable networking solution, achieved through a design that features an extended operating temperature range of -40°C to 85°C and excellent electromagnetic compatibility (EMC). This ensures uninterrupted operation in facilities with significant electrical noise and extreme temperature fluctuations
Transmission Mode: Store-and-forward Backplane Bandwidth: 12.8G
MAC Address Buffer: 8K
Buffer Memory: 12M
Time Delay: < 10µsec
Jumbo Frames: 2K bytes
Fiber Ports: 100Base-FX (SC/FC/ST), 1000Base-X (SC/FC/ST/SFP slot) x
Power: 5 dBm
Rx Sensitivity: 34dBm
Alarm Relay: 1A @ 24V DC
Multi-mode Fiber: 2Km 1310nm
Single-mode Fiber: 20/40/60Km 1310nm; 80/100/120Km 1550nm
Power Input: Single input standard, Dual Redundant input optional
Power Consumption: < 30W
Protection: Reverse polarity protection
Installation: Rackmount
Dimensions: 440mm × 44mm × 315mm
Weight: < 4440g
MTBF: > 500,000 hours
Storage Temperature: -40⁰C to 85⁰C
Relative Humidity: 0 to 95% (non-condensing)
