Introduction

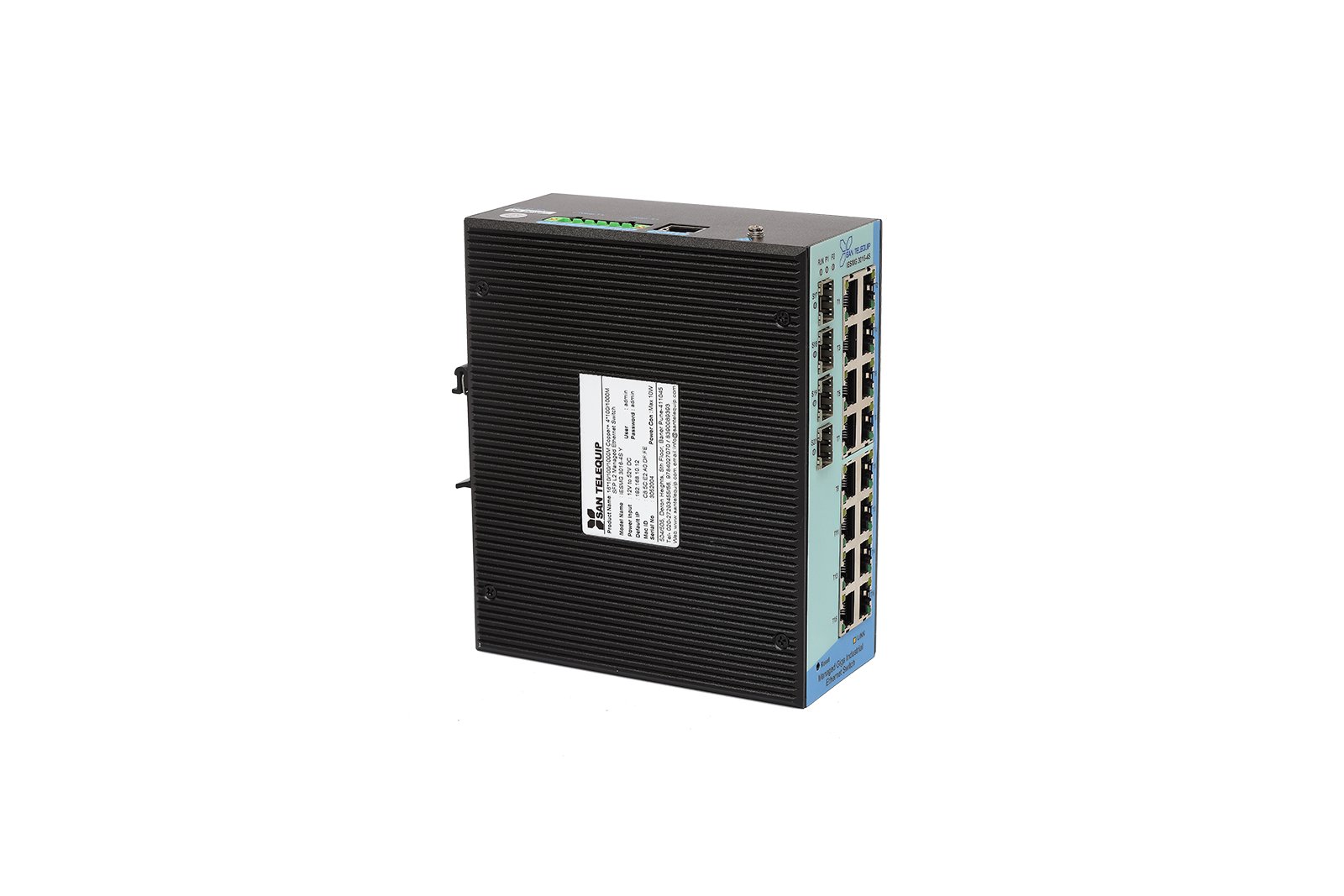

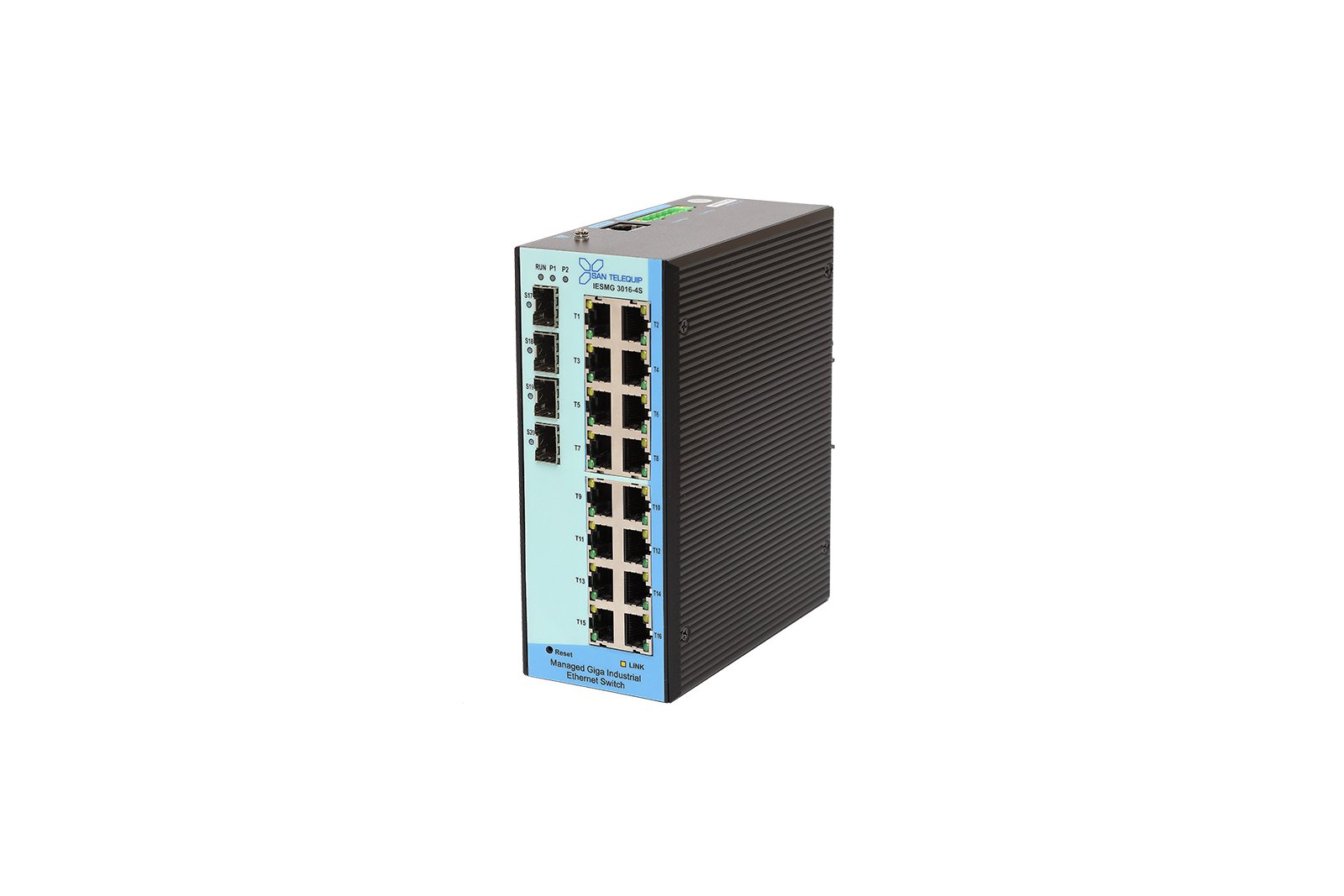

The IPSMG 3016-4S Y is a hardened, 18-port industrial Ethernet switch delivering non-blocking, wire-speed performance. Its core configuration includes sixteen 10/100/1000BASE-TX RJ45 ports with PoE+ support and two Gigabit SFP ports for high-speed fiber optic uplinks. This combination provides exceptional flexibility for connecting a wide array of copper-based devices while maintaining stable, high-performance fiber backhaul connections.
Engineered for reliability in harsh conditions, the switch is encased in a compact, rugged IP40 aluminum housing designed for DIN-rail or wall mounting. It is built to operate flawlessly across an extreme temperature range of -40°C to 80°C, making it a dependable solution for climatically demanding environments found in factory automation, intelligent transportation systems, and critical infrastructure. The inclusion of dual-redundant power inputs further enhances its suitability for high-availability applications where network uptime is paramount
IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x
Packet Buffer Memory: 12Mbit
Packet Forwarding Rate: 42Mpps
MAC Address Table: 8K
Maximum Frame Size: 10240 bytes
Flow Control: Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
MTBF: >300,000 hours
1000 Base-FX Ports: 2 x Gigabit SFP Slots
100BASE-TX: Cat5 or later UTP (≤100 meter)
1000BASE-TX: Cat6 or later UTP (≤100 meter)
Power Consumption: < 15W
PoE Output Voltage: DC48V
PoE Power Output: Max. 15.4 watts (IEEE 802.3af), Max. 30 watts (IEEE 802.3at)
Total PoE Budget: 480W max.
PoE Power Pin Assignment: 1/2+; 3/6- PoE Power Type: End-span
Surge Protection: Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
Dimensions : 175 x 135 x 46mm
Weight: 1.18KG
Installation: DIN rail and wall-mountable design
Storage Temperature: -40 to 80°C
Relative Humidity: 5% to 95% (non-condensing)
| Categories | AC Supply | DC Supply | Download |
|---|---|---|---|
| IPSMG 3016-2S Y | – |
