Introduction

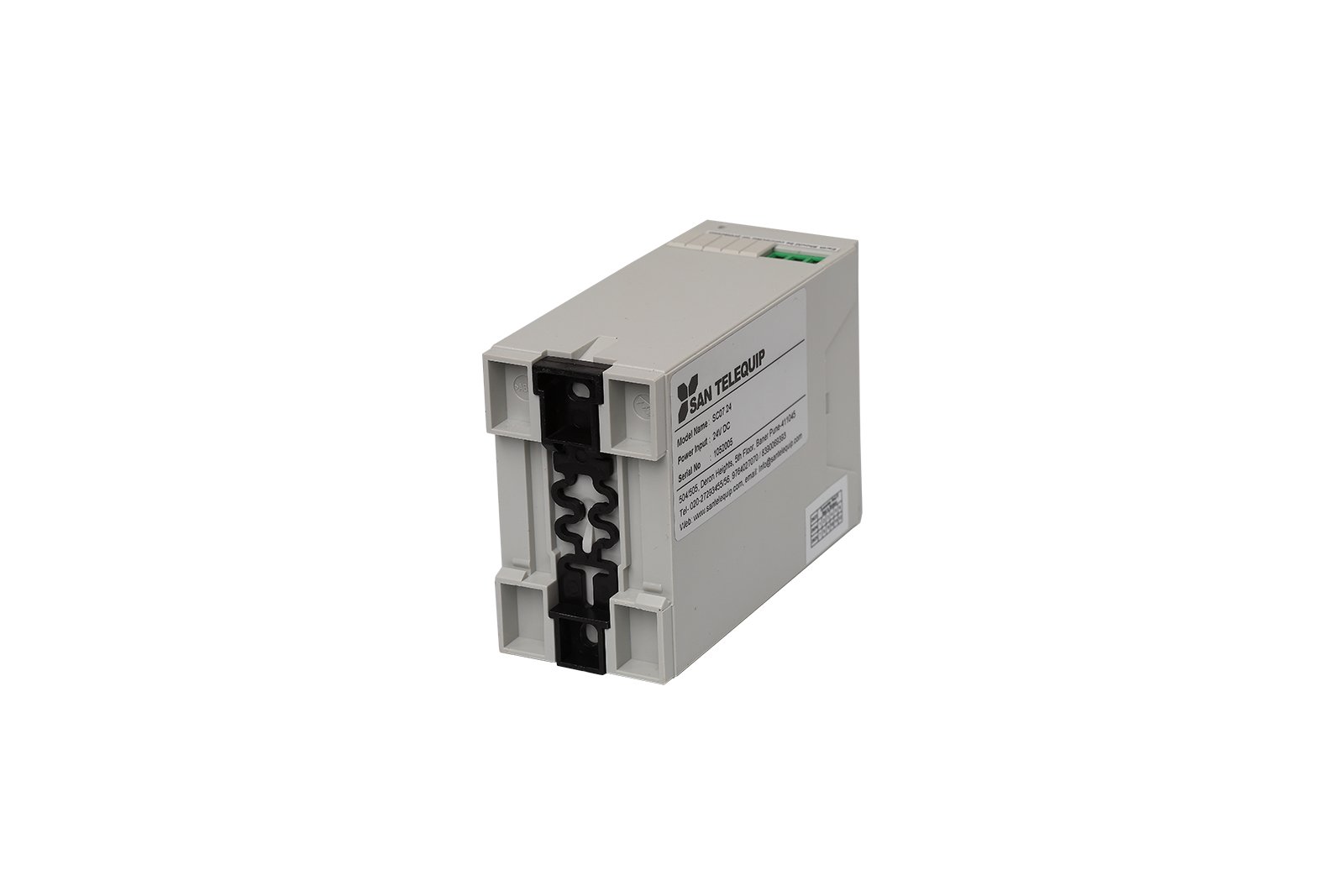

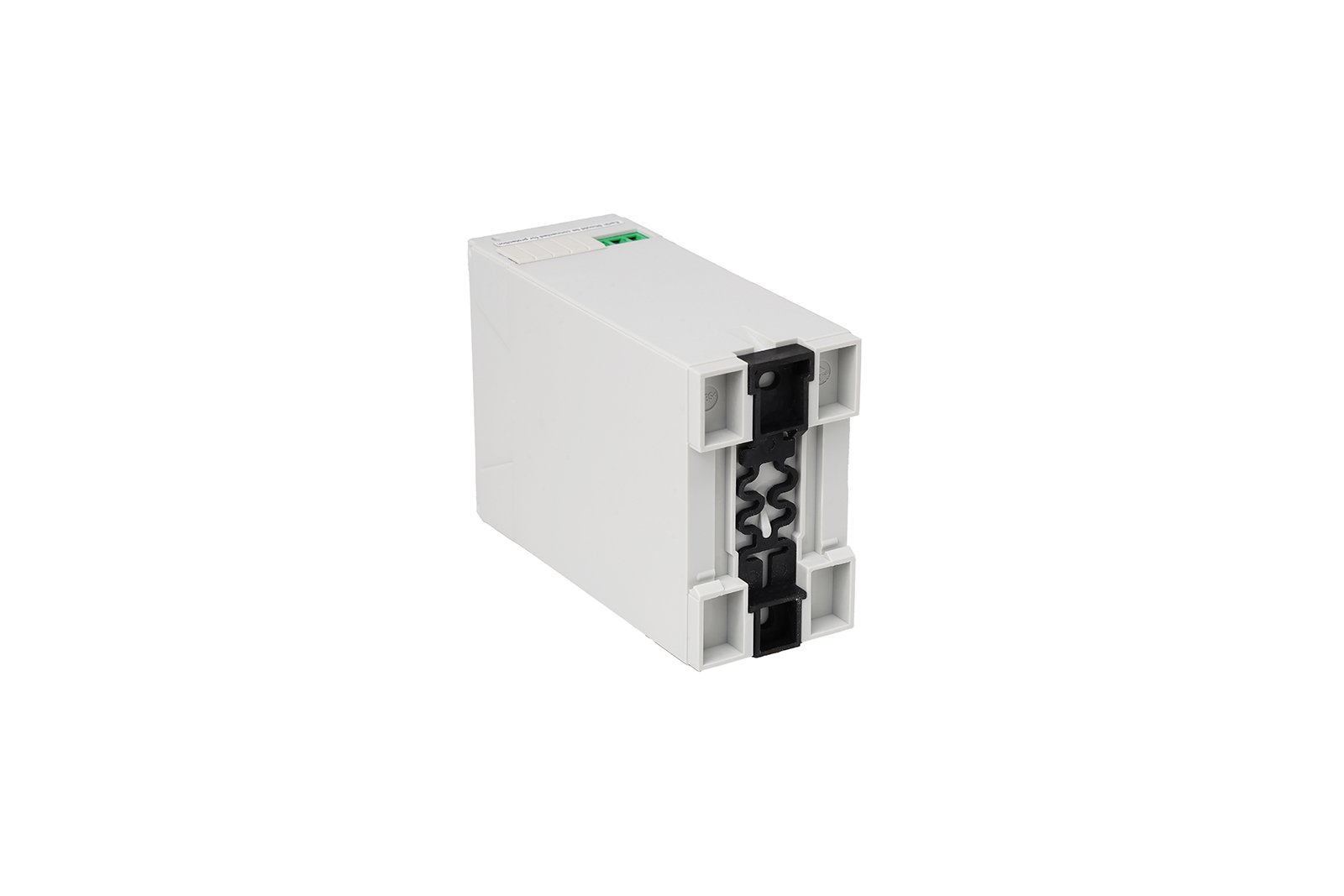

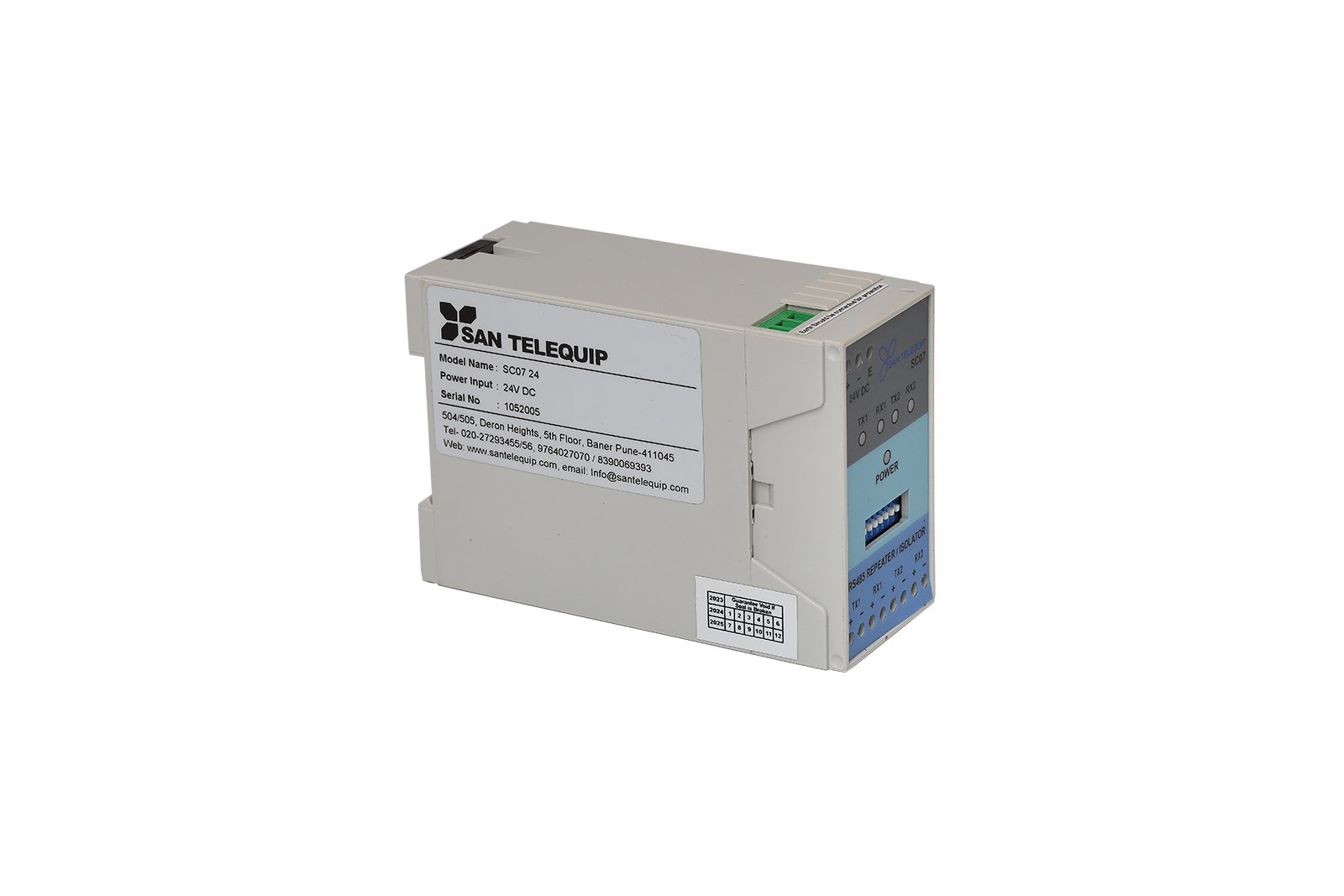

Industrial communication networks often face significant challenges, including signal degradation over long distances and electrical interference from heavy machinery, which can corrupt data and damage sensitive equipment. The SC07S RS485 Isolator Repeater is a specialized device engineered to solve these exact problems, ensuring high data integrity and robust equipment safety in demanding operational environments.
The SC07S is a dual-function device designed to enhance the reliability and reach of RS485 serial communication networks. Its primary function is to act as a repeater, regenerating the RS485 signal to effectively expand the line-driving capability beyond the standard 1.2 km limit. Simultaneously, it serves as a high-integrity isolator, creating a protective electrical barrier between segments of the network.
Connector: Screw type terminal blocks for Input, Power, and Output
Impedance: 90Ω/km
230V AC (Range: 90 to 260V AC, 50 Hz)
24V DC (Range: +/- 10%)
48V DC (Wide Range: 18 to 72V DC)
Protection: Short Circuit, Reverse Polarity (for DC input)
Power Consumption: 1.2 watts
Dimensions: 45mm (L) x 110mm (D) x 75mm (H)
Relative Humidity: 5 – 95 % (non-condensing)
| Categories | 24 Volt | 48 Volt | 110 Volt | 230 Volt | Download |
|---|---|---|---|---|---|
| SC07 S 24 | – | – | – | ||
| SC07 S 48 | – | – | – | ||
| SC07 S 230 | – | – | – |
