Key Features & Benefits
1. Versatile and Cost-Effective Long-Range Extension Capabilities
2. Intelligent Auto-Negotiation for Future Network Growth
3. Configuration-Free Duplex Operation via Auto-Sensing
4. Comprehensive Standards Compliance and Reliable Flow Control
5. High-Performance Data Throughput and Fiber Optic Rate Consistency
6. Enhanced Network Diagnostics through Link Fault Pass Through
7. Environmental Adaptability and Energy Efficiency
Key Features & Benefits
- Versatile and Cost-Effective Long-Range Extension Capabilities
- Intelligent Auto-Negotiation for Future Network Growth
- Configuration-Free Duplex Operation via Auto-Sensing
- Comprehensive Standards Compliance and Reliable Flow Control
- High-Performance Data Throughput and Fiber Optic Rate Consistency
- Enhanced Network Diagnostics through Link Fault Pass Through
- Environmental Adaptability and Energy Efficiency
Introduction

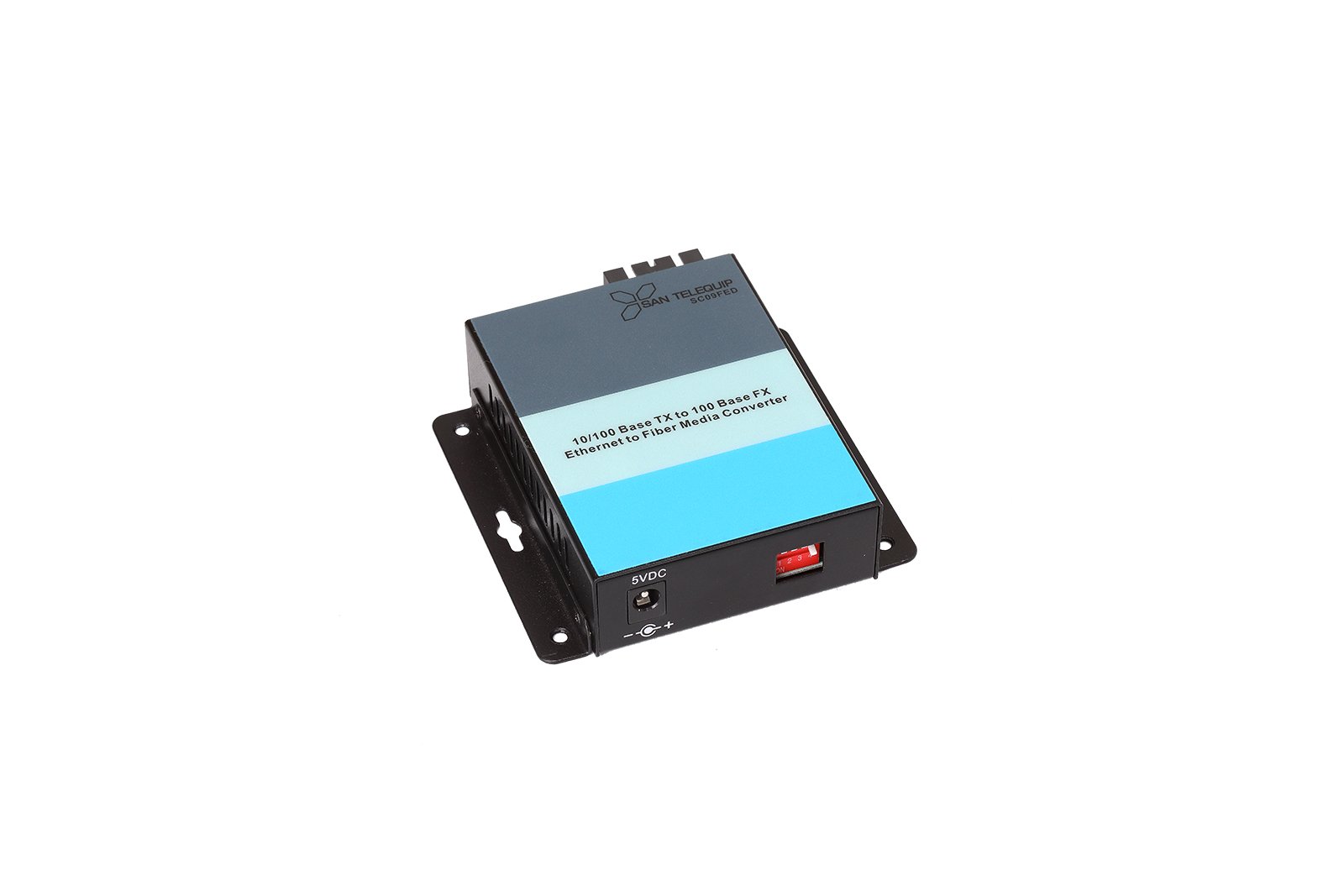

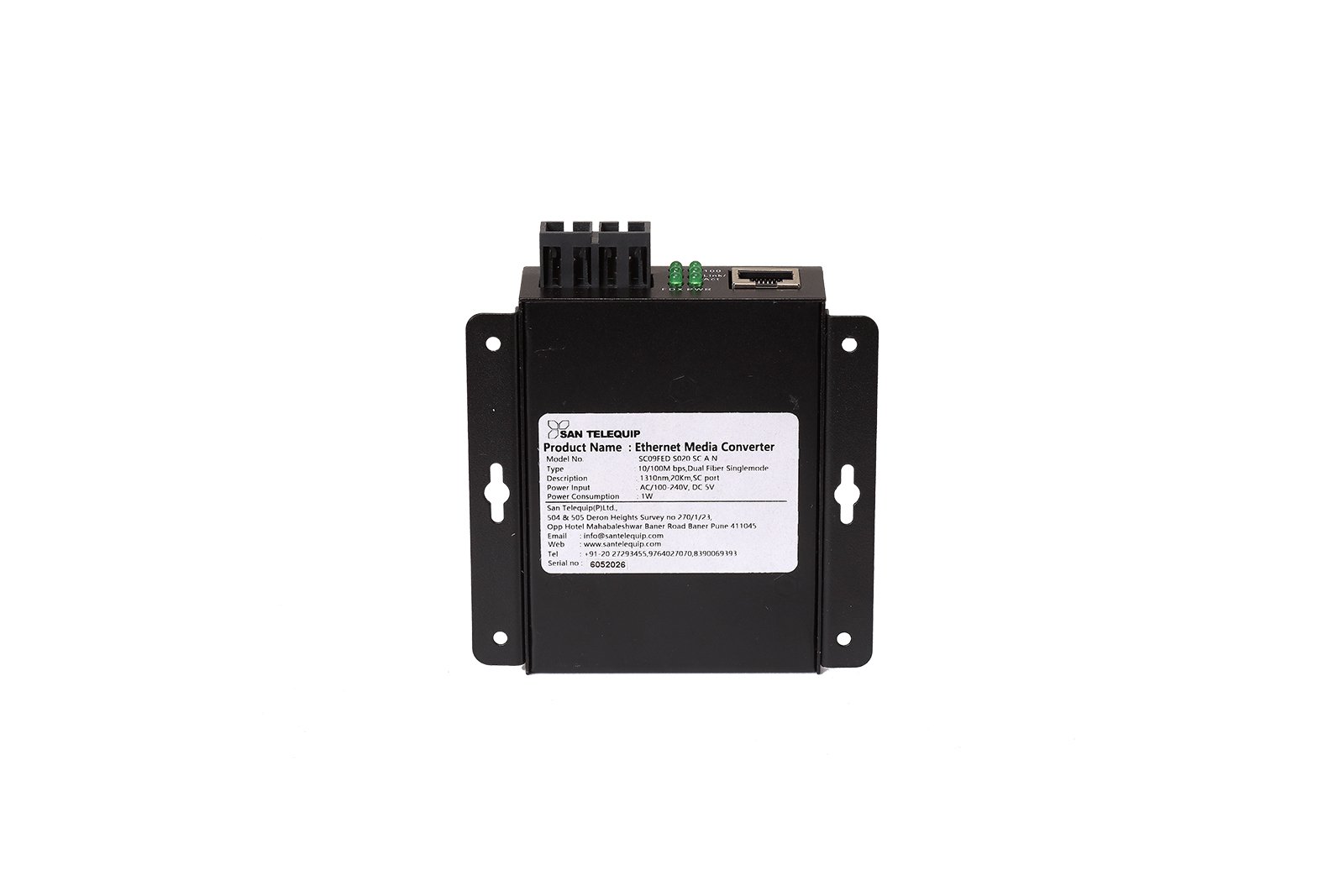

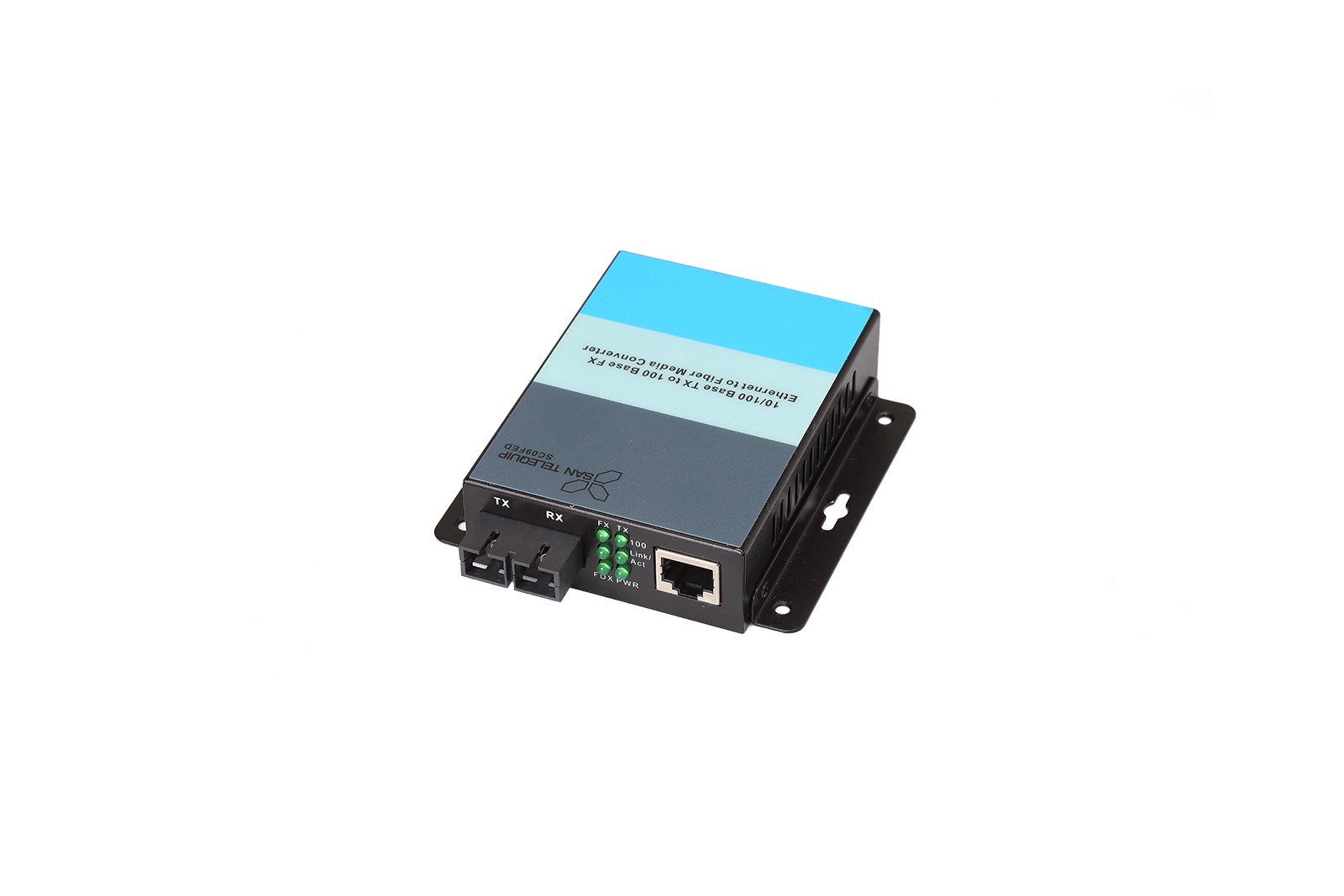

The San Telequip SC09FED is a cost-effective, plug-and-play media converter designed to facilitate long-range extensions for 10Base-T or 100Base-TX Ethernet networks. Its core design philosophy centers on simplicity and adaptability. The inclusion of 10/100 Auto-negotiation on the copper port makes the device a strategic choice for organizations planning future network upgrades, as it can seamlessly integrate with legacy 10Base-T equipment today and modern 100Base-TX infrastructure tomorrow without requiring replacement.
Furthermore, the SC09FED features built-in Auto-sensing capabilities that automatically detect and configure the device for either Full or Half-duplex Ethernet operation. This eliminates the need for manual configuration, streamlining the deployment process and reducing the potential for setup errors. By combining ease of use with forward-looking features, the device provides a robust solution for extending the reach and flexibility of any Ethernet network. The following sections detail the specific features and technical specifications that enable this performance.
Optic Port Rate: 100Mbps
Data Throughput: 14,880pps (10Mbps), 148,800pps (100Mbps)
Flow Control: IEEE802.3X (full-duplex), Back-pressure (half-duplex)
Optic Port Connector: SC, ST, or FC
Fiber Transmission: 20Km (default), up to 100Km (single-mode), 2Km (multi-mode)
Single-mode Cable: 8.3/125, 8.7/125, 9/125, 10/125μm
Multi-mode Cable: 50/125, 62.5/125μm
Tx Power: -7 to -12 dBm @ 1310nm
Rx Sensitivity: ≥ -35 dBm @ 1310nm
Power Consumption: < 2.5W
Mounting: Table Top
Weight: 230g
Storage Temperature: -20°C to 70°C
Relative Humidity: 5% to 95% (Non-condensing)3
