Introduction

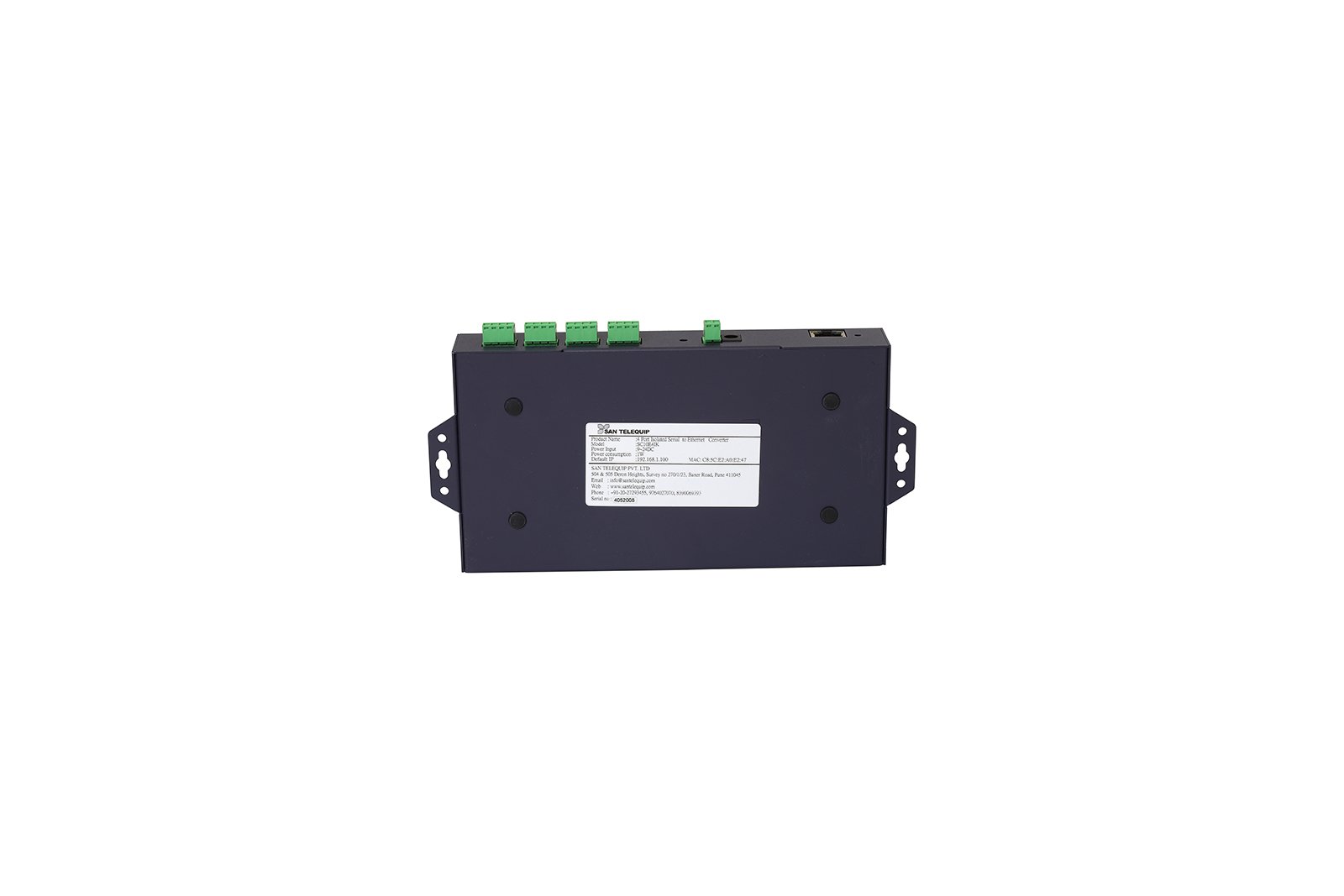

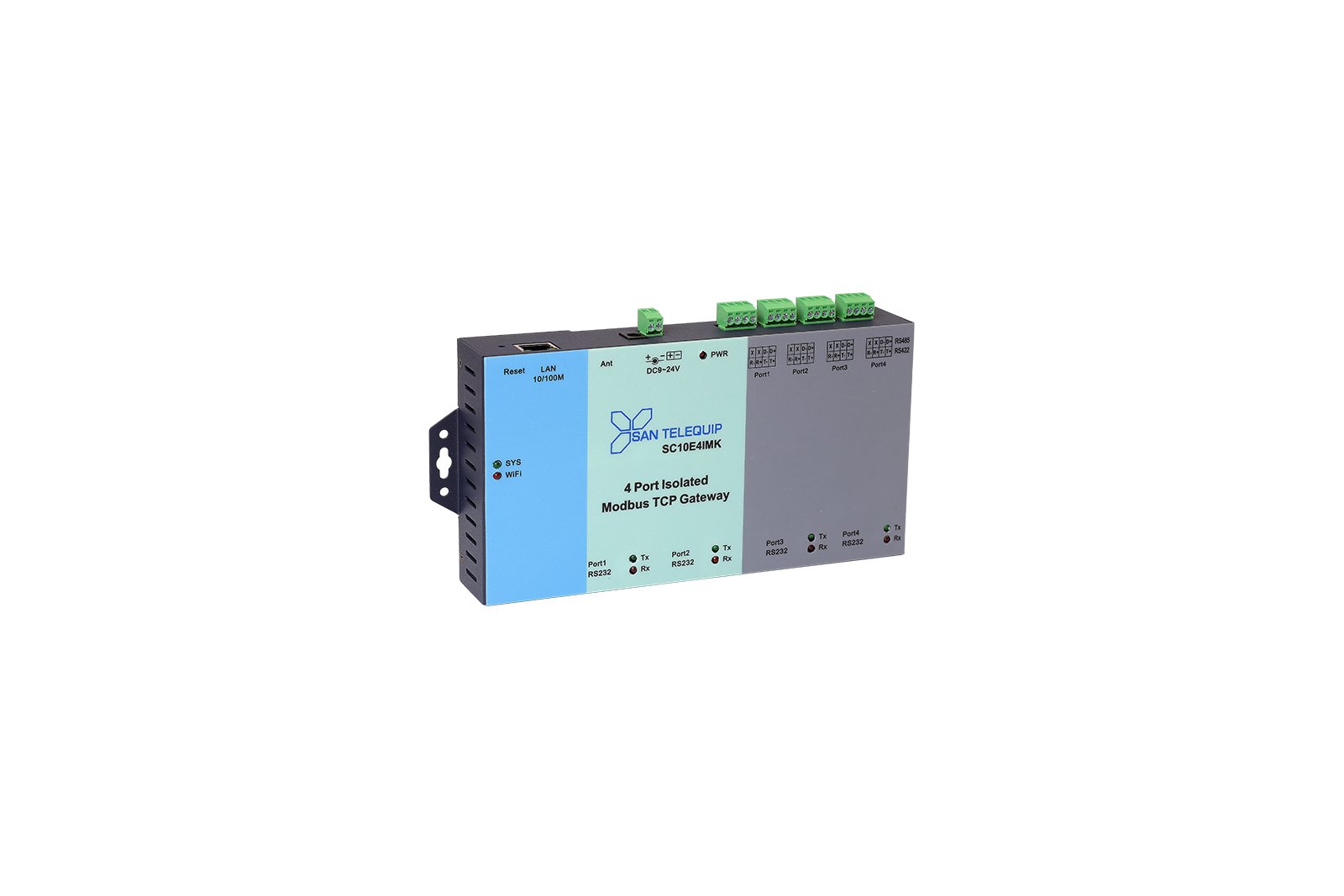

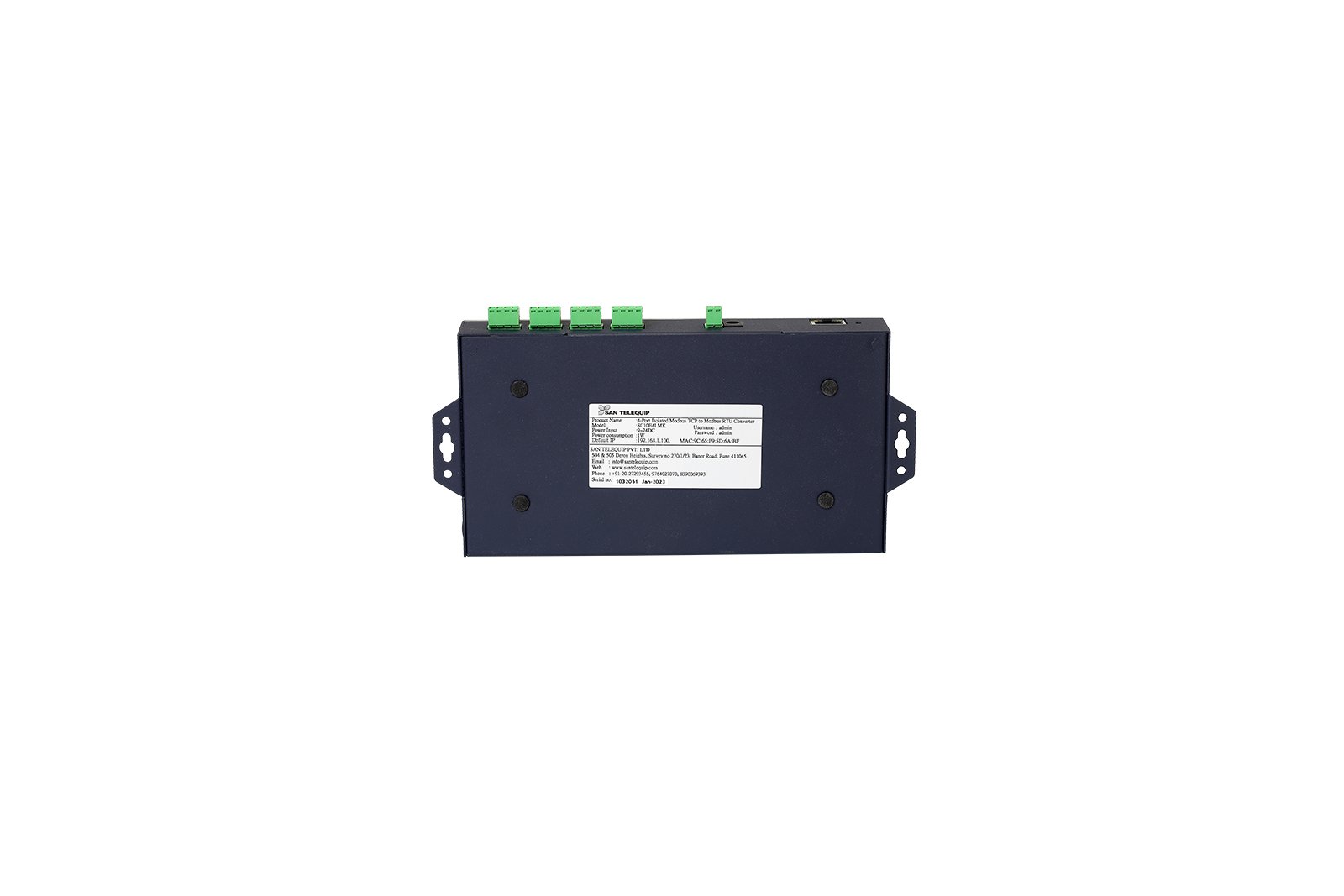

The SC10E4I MK functions as a high-performance protocol converter, translating data packets between Modbus RTU and Modbus TCP. It features four versatile serial ports that automatically detect RS-232, RS-422, or RS-485 interfaces, allowing for flexible connection to a wide array of field devices. At its core, the gateway is powered by an MT7688AN 580 MHz MIPS CPU with 128MB of DDR2 RAM, running on the stable OpenWrt Linux operating system. This processing power enables the device to support up to eight Modbus TCP masters—each managing 32 simultaneous requests—while also supporting eight TCP slaves on each of its four RTU ports, ensuring high-throughput, bi-directional data conversion in complex applications.
This document details the key features, technical specifications, and ordering information for the SC10E4I MK, highlighting the specific capabilities that make it an ideal solution for industrial network integration.
- PoE: 802.3-af (Optional)
RAM: 128M Bytes DDR2 RAM
ROM: 32M Bytes Flash ROM
Operating System: Open Wrt Linux OS
Modbus Capacity: Supports 8 Modbus TCP Masters (each with 32 simultaneous requests) & 8 TCP Slaves on each RTU port.
Ethernet Protocol: ARP, IP, ICMP, TCP, HTTP, DHCP, NTP, FTP
Ethernet Protection: Built-in 1.5KV Magnetic Isolation
Serial Ports: 4 x RS-232/422/485 (Auto Detect)
Serial Parameters: Parity (None, Odd, Even, Mark, Space), Data Bits (5, 6, 7, 8), Stop Bits (1, 2)
Serial Speed: 300 bps to 921.6 Kbps

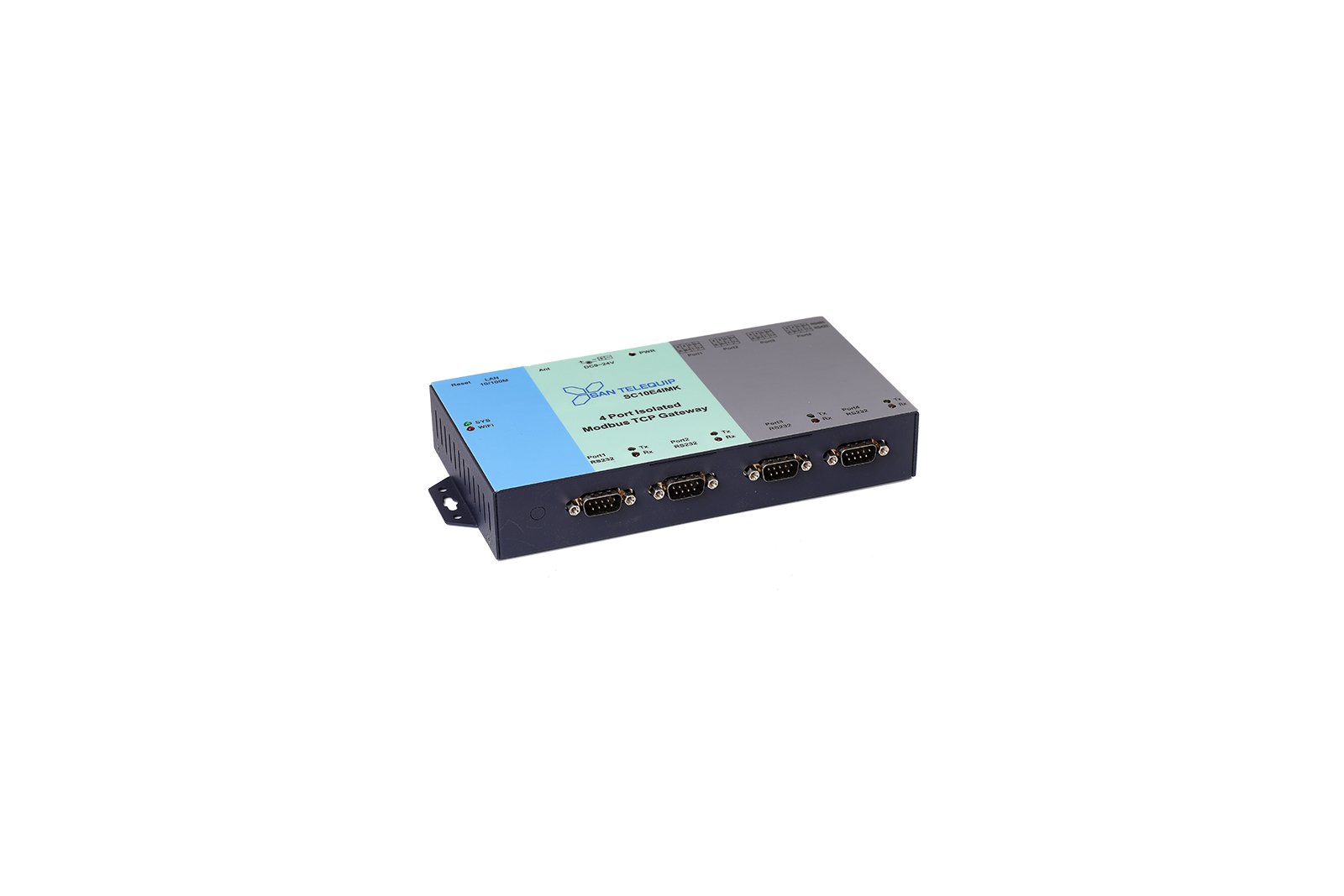

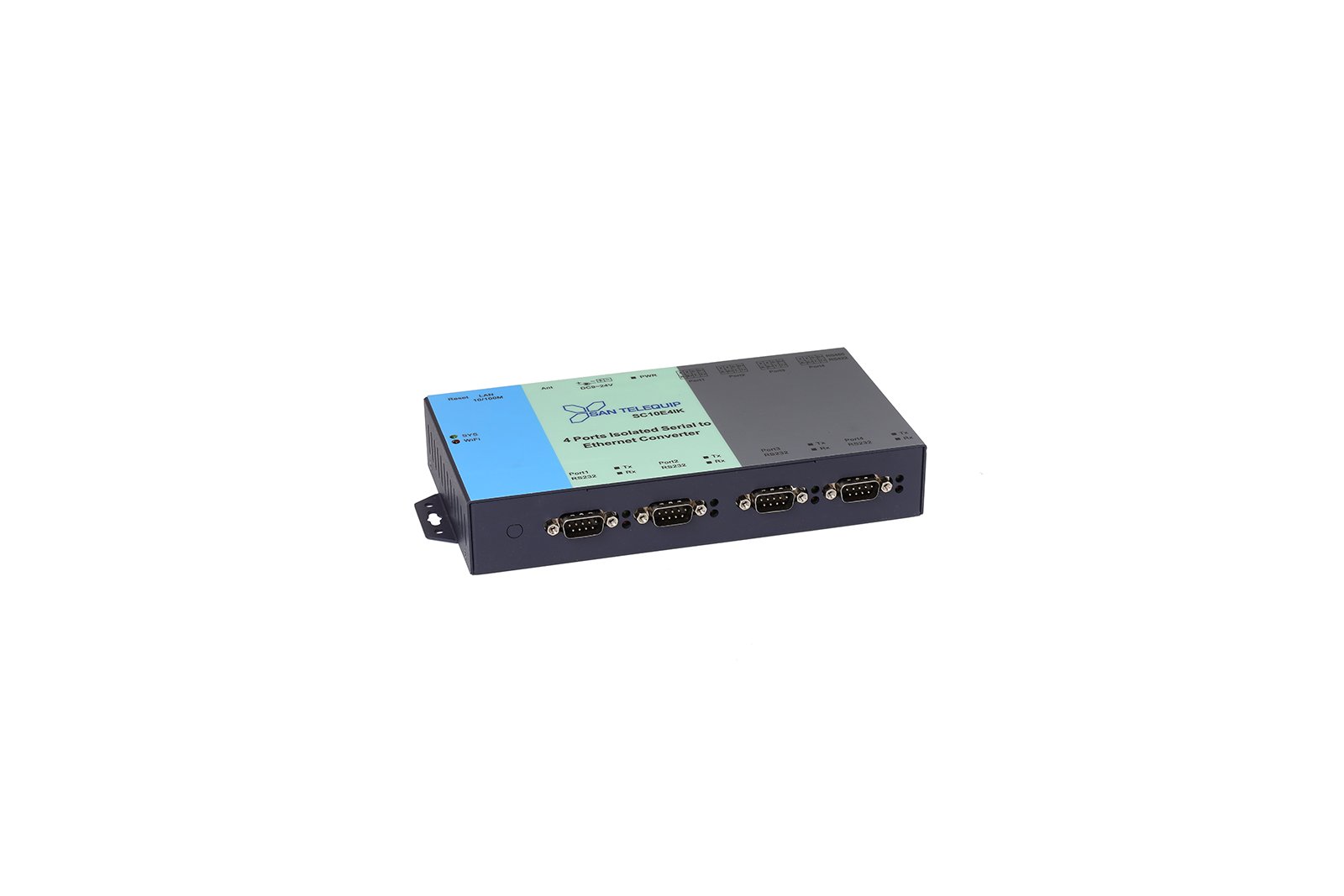

Serial Connectors: DB9 for RS-232; 4-pin Terminal Block for RS-422/485
Serial Protection: 3000V DC Isolation, 600W Surge Protection (RS422/485), 15KV ESD Protection (all signals)
WiFi (Optional): 2.4GHz, up to 72.2 Mbps, RP-SMA connector
WiFi Security: WEP 64-bit/128-bit data encryption, AES, WPA/WPA2 personal, WPS2.0, WAPI
Digital I/O: 8 x GPIO Pins
PoE (Optional): 802.3-af
Weight: 660 gm
Housing: Metal
Mounting: Back of Panel / DIN Rail provision
Storage Temperature: -25⁰C to 80⁰C
| Categories | AC Supply | DC Supply | Download |
|---|---|---|---|
| SC10E4I MK | – |
