Introduction

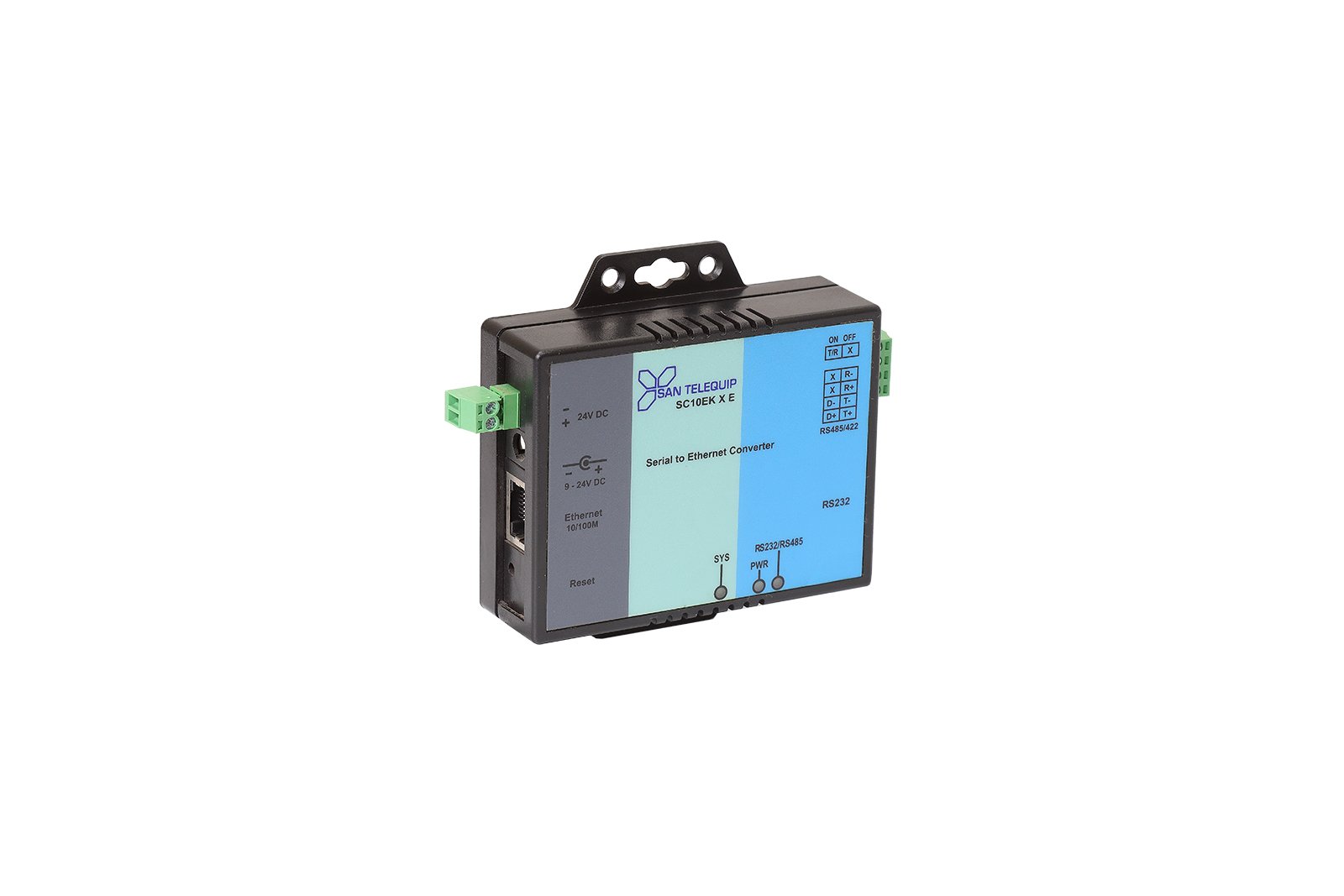

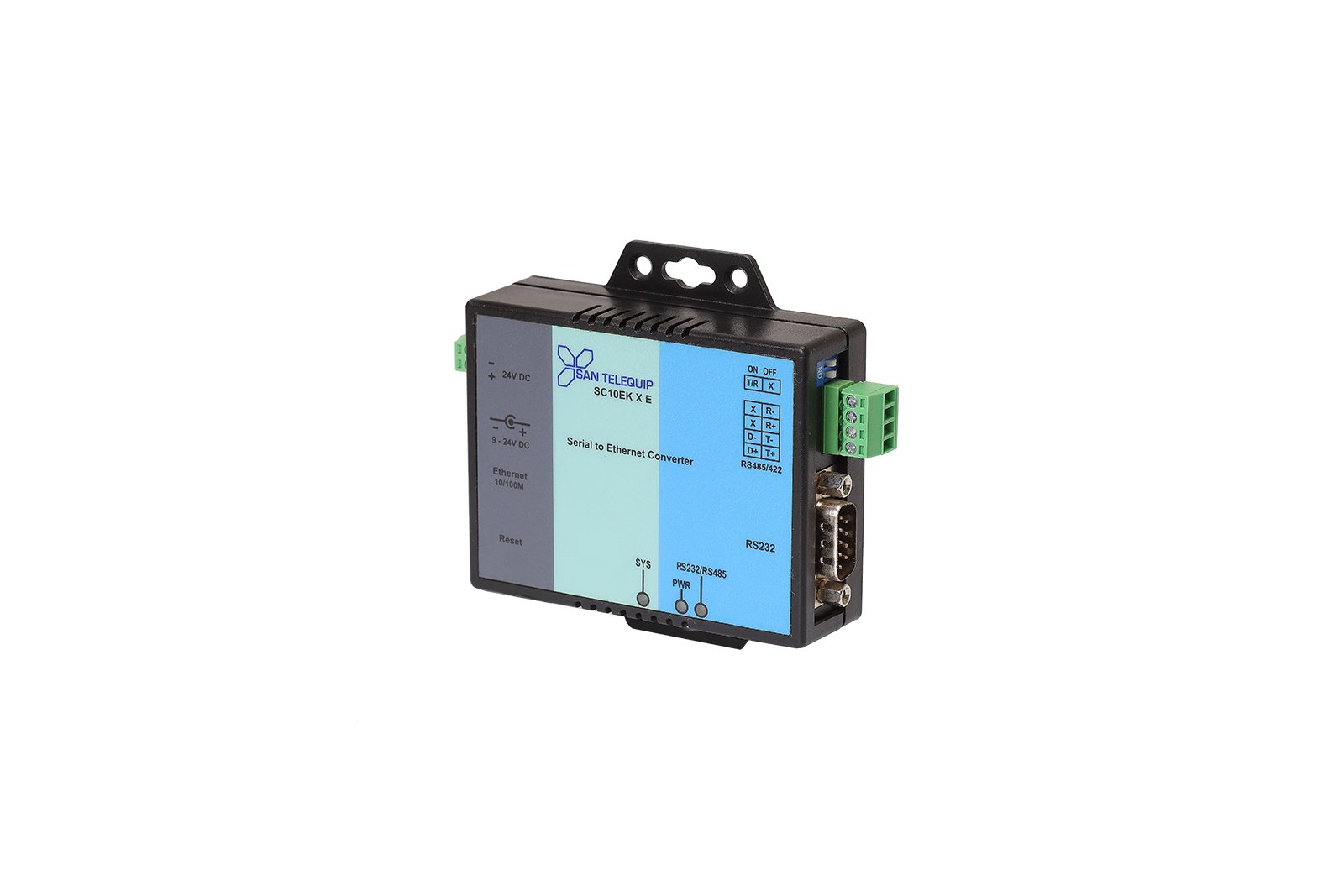

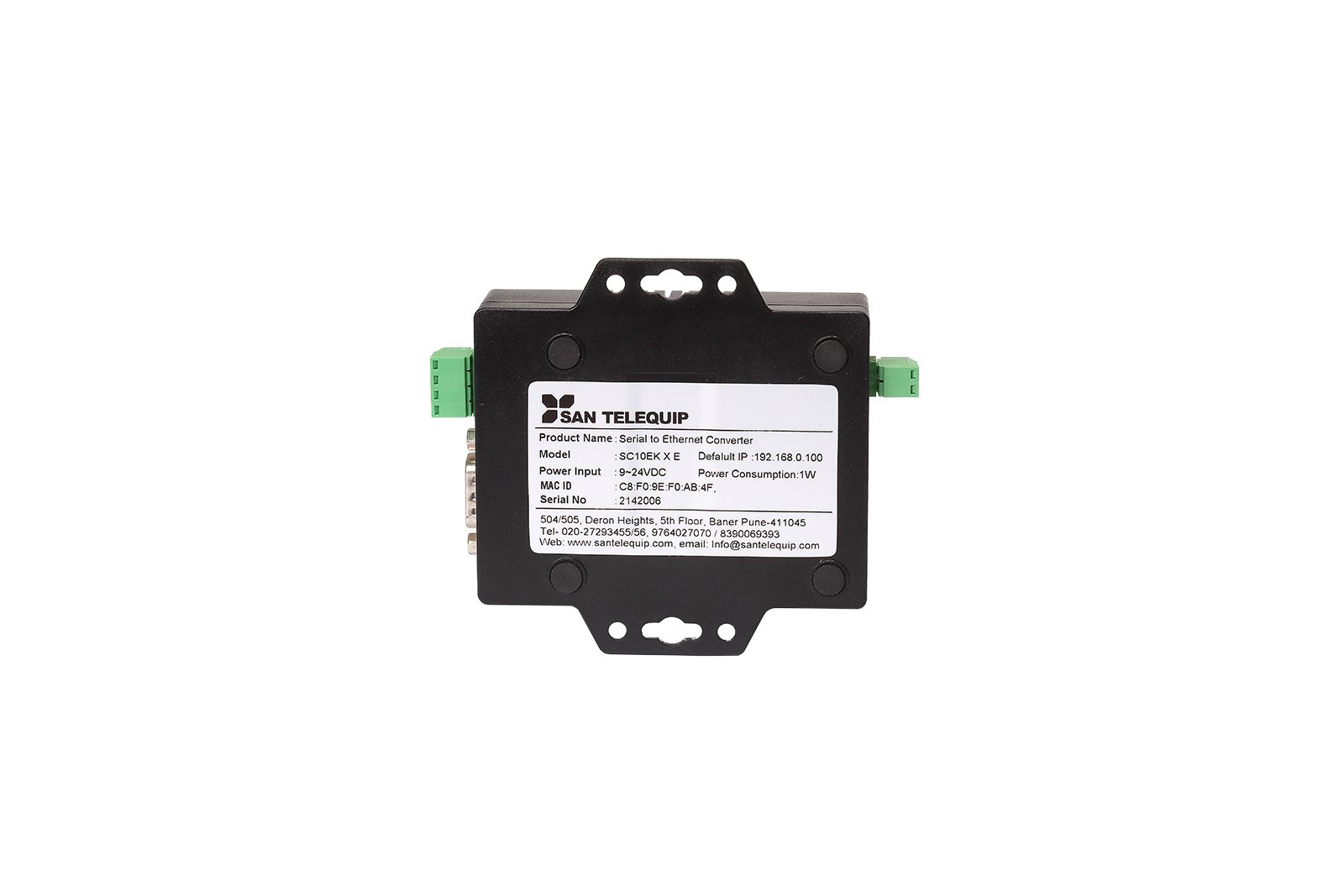

The San Telequip SC10EK X E is a compact and efficient Serial to Ethernet converter designed to provide seamless network connectivity to any device with a serial port. Its primary function is to act as a bridge, converting serial data streams (RS232, RS422, or RS485) into TCP/IP packets that can be transmitted over an Ethernet LAN. This allows legacy equipment to be remotely accessed, monitored, and managed as if it were a native network device.
This capability unlocks powerful applications, such as running serial port communications over long distances via the corporate LAN, eliminating the physical constraints of traditional serial cables. Furthermore, when used with a Virtual COM port utility, the converter enables protocol-independent serial devices to communicate effectively over the network, extending the life and utility of valuable existing assets. The following sections detail the specific features and technical specifications that deliver this robust functionality.
Serial Standards: RS232 (3-wire only: Rx, Tx, GND), RS422 (Rx+, Rx-, Tx+, Tx-), RS485 (Data+, Data-)
Port Configuration: Auto Detect, Parity (None, Odd, Even, Mark, Space), Data Bits (5, 6, 7, 8), Stop Bits (1, 2)
Ethernet Speed: 10/100 M Auto Detecting
Serial Speed: 300 bps to 230.4 Kbps
Operating Modes: TCP Server / TCP Client / UDP
Security: Setup Password, IP Filter
Protection: 1.5KV Magnetic Isolation, 15KV ESD for all signals, RS485 Signals Surge Protected
Weight: 150 gm
Enclosure: Plastic
Storage Temperature: -25°C to 80°C
