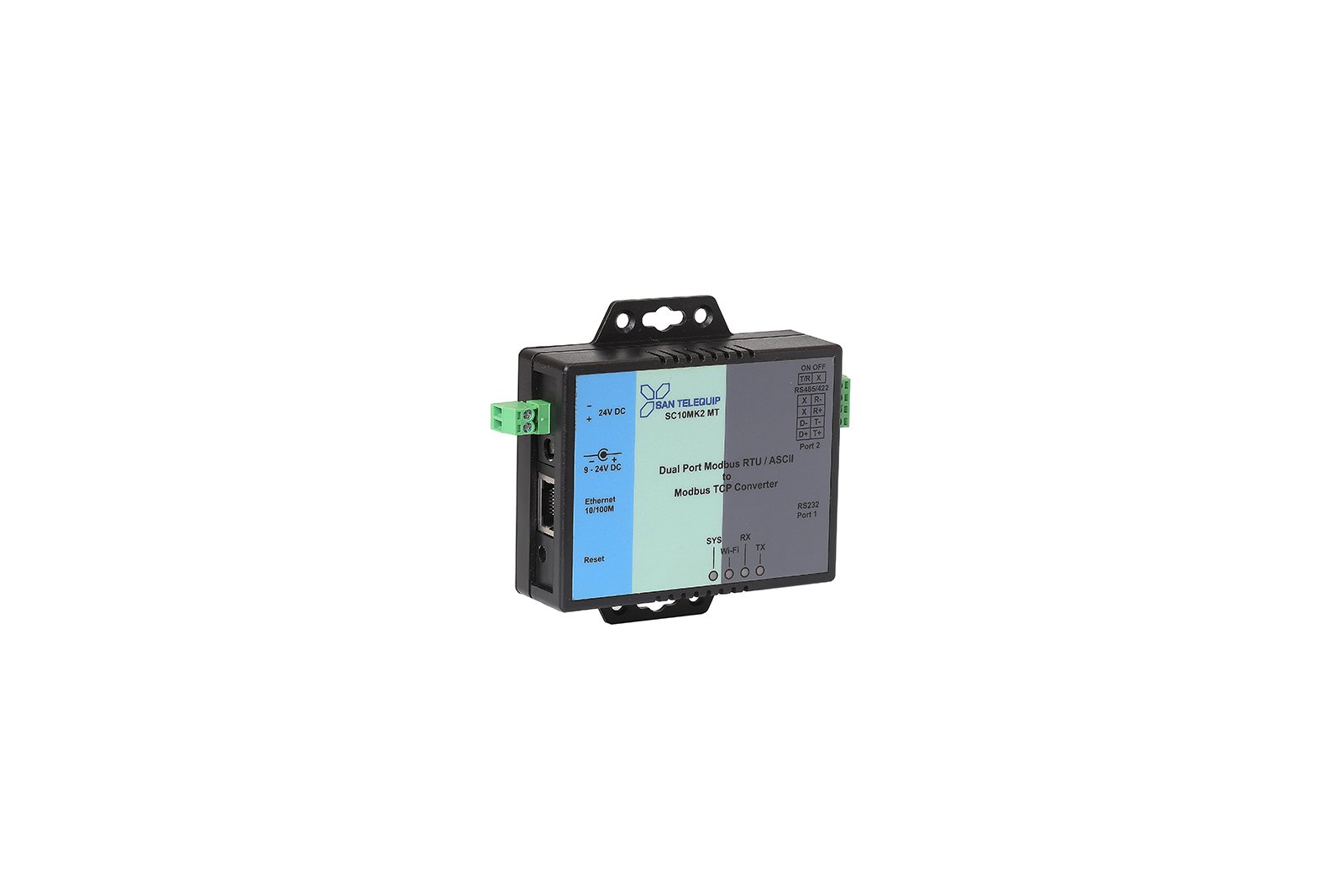

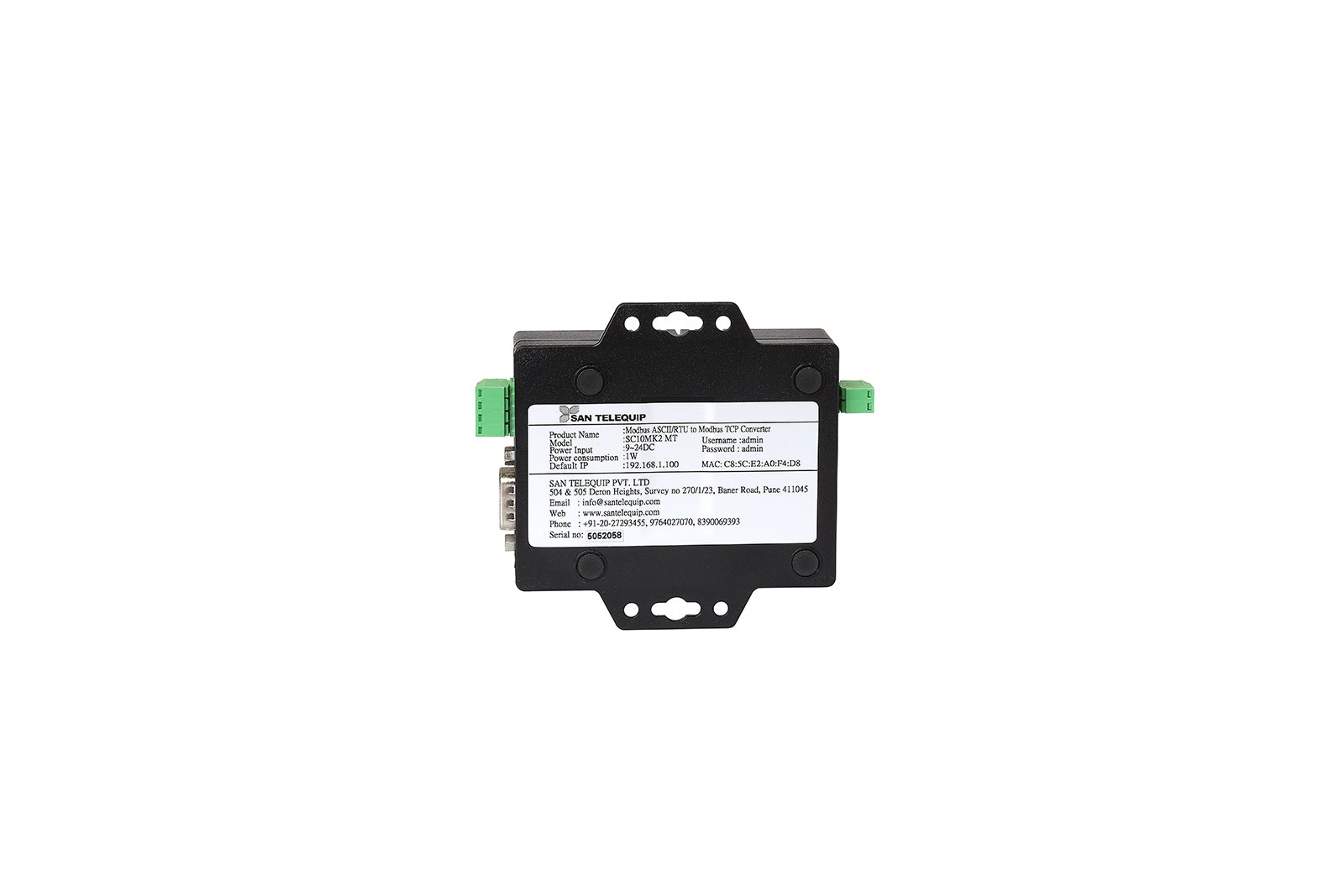

Introduction
The SC10MK X E serves as a critical bridge between legacy serial Modbus devices and modern Modbus TCP/IP networks. In an era of increasing connectivity, this converter provides a straightforward solution to make serial equipment "Internet ready," enabling remote software access from anywhere on the network. Its high-end CPU makes it an ideal choice for modernizing systems in applications such as energy meters, solar controls, PLCs, and other industrial instruments.
Functioning as a single-port Modbus RTU/ASCII to Modbus TCP gateway, the SC10MK X E translates between the serial-based Modbus protocols and the Ethernet-based TCP protocol. This allows industrial control systems, SCADA software, and other TCP-based applications to communicate seamlessly with devices that traditionally rely on RS-232, RS-422, or RS-485 connections. The device simplifies network architecture, reduces wiring complexity, and extends the life of valuable serial assets.
OS: RTOS
Protocols: ARP, IP, ICMP, UDP, TCP, HTTP, DHCP
Modbus Modes: Modbus TCP to RTU/ASCII Slave, Modbus RTU/ASCII to TCP Slave
Serial Speed: 300 bps to 230.4 Kbps
Serial Port: 1 x RS-232 or RS-422/485
Connectors: DB9 Male (RS-232), 4 Pin Screw type Terminal Block (RS-485/422)
RS-232 Pins: Rx, Tx, GND
RS-422 Pins: Rx+, Rx-, Tx+, Tx-
RS-485 Pins: Data+, Data-
Consumption: 500mA@24V
Connectors: Screw Terminal and DC Jack
Weight: 150 gm
Housing: Plastic
Storage Temperature: -25°C to 80°C
