Introduction

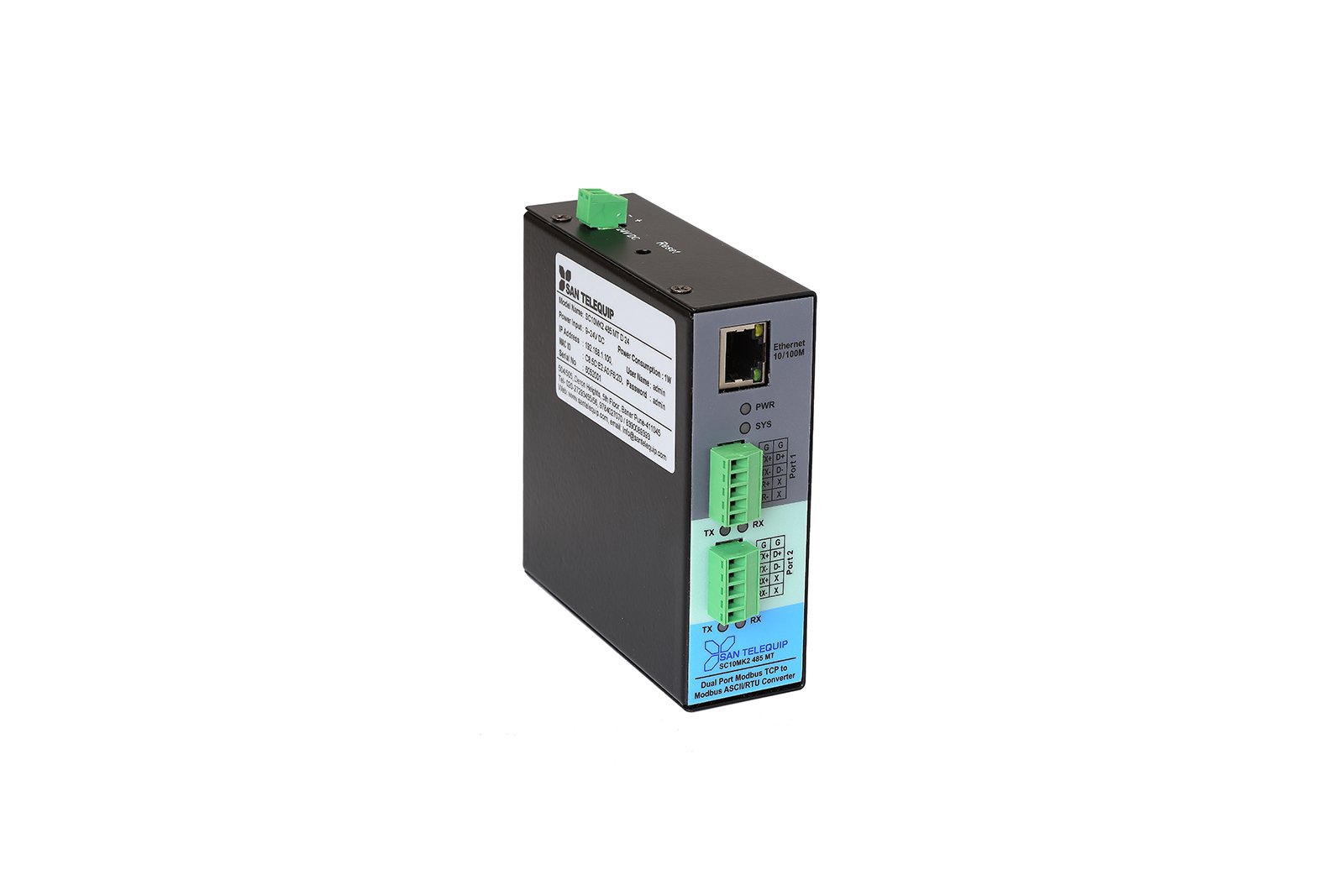

The SC10MK2 485 MT is a high-performance, versatile Modbus gateway designed for complex industrial integration scenarios. It is engineered to connect multiple RS-485/422 device chains—common in applications involving DCS, HMI,PLC and sensor networks—to a central Modbus TCP network. This converter's powerful processing capabilities and dual-port design make it an ideal choice for aggregating data from numerous field devices like energy meters and solar controls.
Featuring two independently configurable RS-485/422 serial ports, this converter can manage a high volume of data traffic. It is built on a high-end MIPS CPU and supports up to 8 simultaneous TCP masters, with each master capable of 32 simultaneous requests. The device also offers exceptional installation flexibility with multiple power options, including standard AC/DC inputs and an optional Power over Ethernet (PoE) capability, which simplifies wiring in challenging locations.
RAM: 128M Bytes DDR2 RAM
ROM: 32M Bytes Flash ROM
OS: OpenWrt Linux OS
Serial Speed: 300 bps to 921.6 Kbps
Modbus Modes: RTU Master & Slave, ASCII Master & Slave, TCP Master & Slave
Serial Ports: 2 x RS-485/422
RS-485 Pins: Data+, Data-, GND
RS-422 Pins: Rx+, Rx-, Tx+, Tx-, GND
WiFi Antenna Connector- 2dBi, RP-SMA
Serial Port Parameters
Parity- None, Odd, Even, Mark, Space
Data Bit - 5, 6, 7, 8
Stop Bit - 1, 2
DC Jack for External Adapter
48, 110, 220V DC, 3 Pin Terminal block
230V AC (Range 165V AC to 265V AC), 3 Pin Terminal block
Power over Ethernet 802.3 af (optional)
33 x 110 x 140 mm for AC Supply
Weight: 450 gm
Housing: Metal

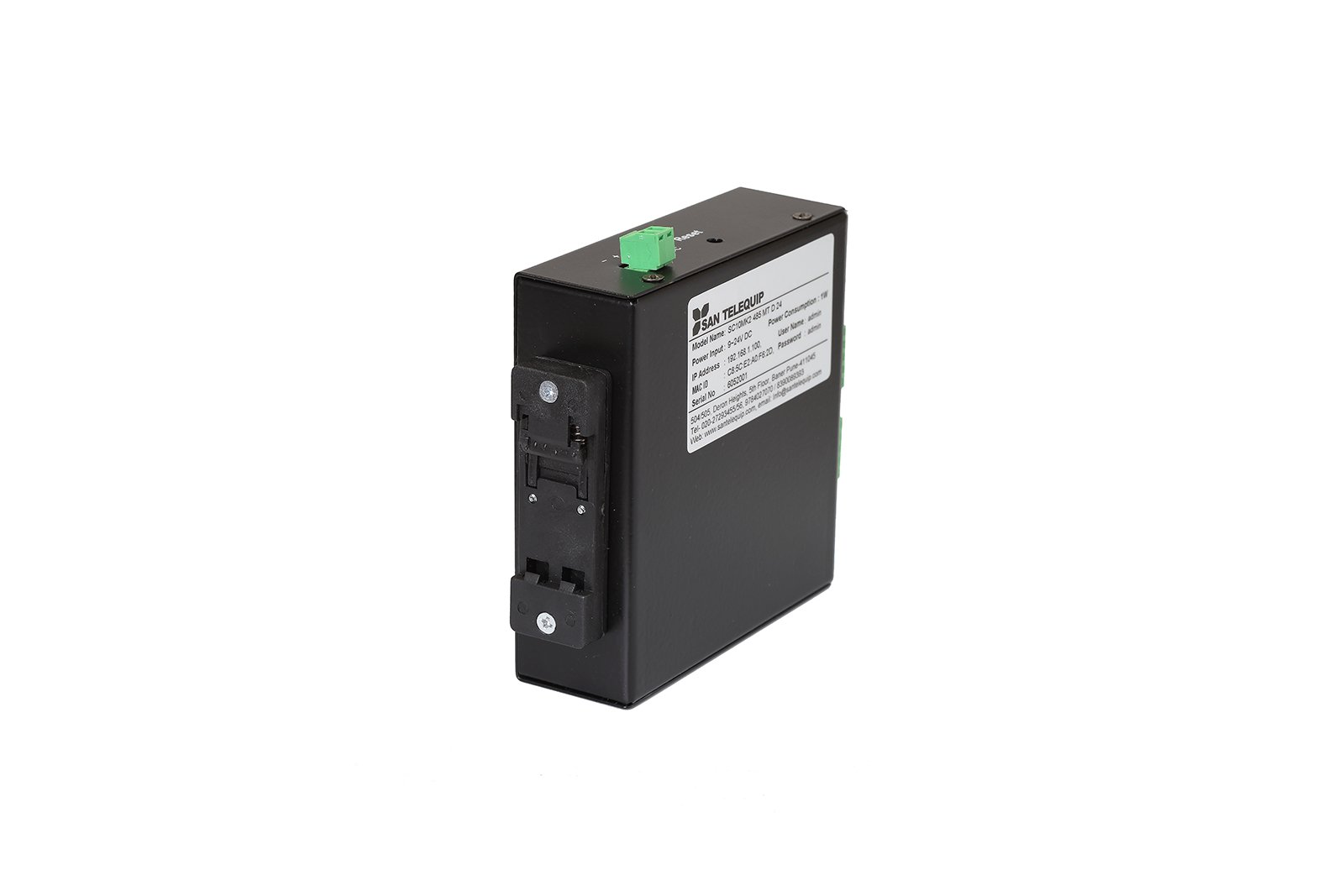

Mounting: DIN Rail
Storage Temperature: -25°C to 80°C
| Categories | Single mode | Multi mode | ST Connectors | SC Connectors | AC Power Supply | DC Power Supply | Download |
|---|---|---|---|---|---|---|---|
| SC10MK2 485 MT D 24 | – | – | – | – | – | ||
| SC10MK2 485 MT A 230 | – | – | – | – | – |
