Introduction
In modern industrial networking, media converters play a critical role in ensuring seamless and reliable communication across diverse physical media. They serve as the essential bridge between traditional copper-based Ethernet infrastructure and high-speed, long-distance fiber optic backbones, particularly within the harsh operational environments common in manufacturing, utilities, and transportation.

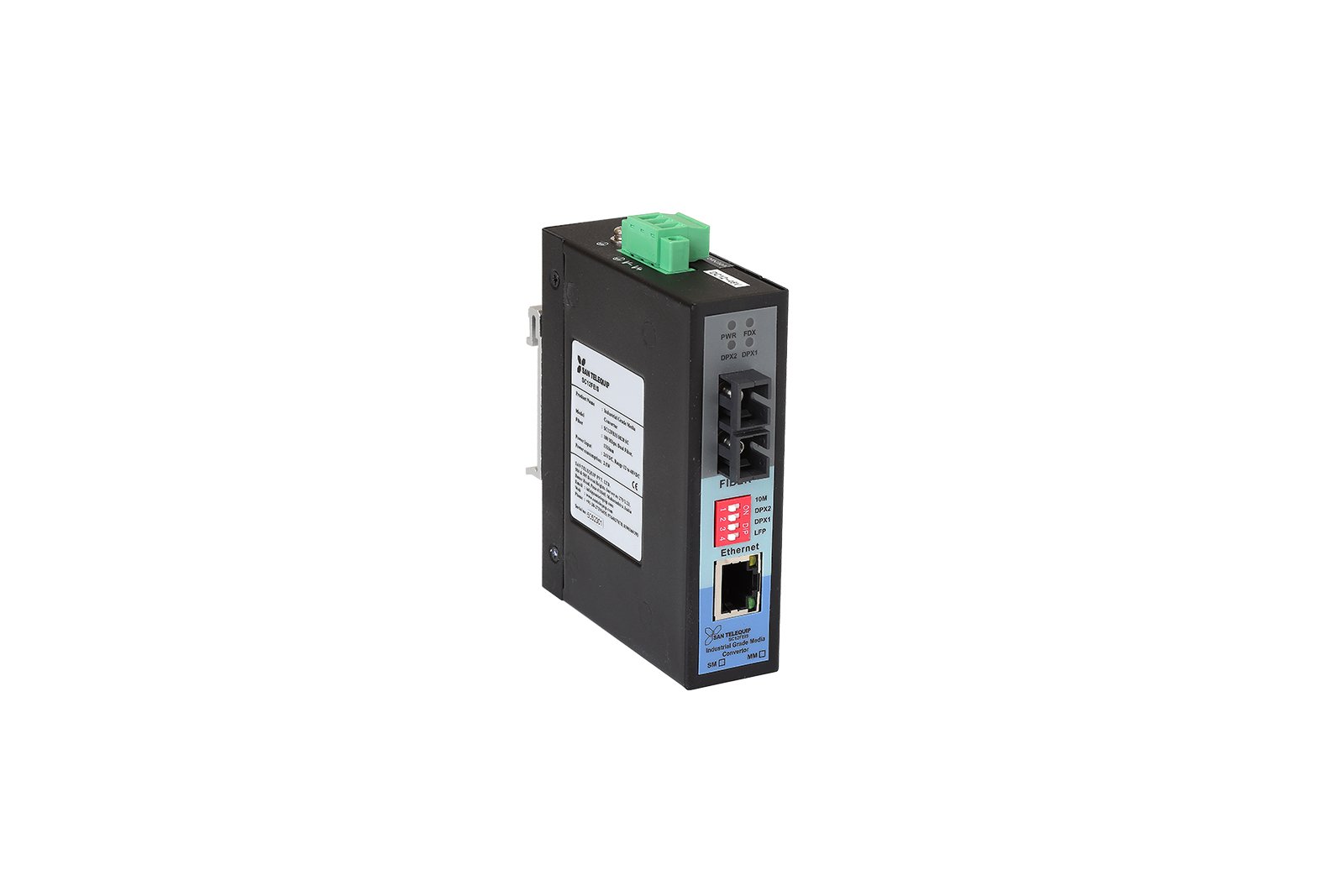

The San Telequip SC12FE2IS is an industrial-grade, unmanaged, dual-port 10/100Base-TX to 100Base-FX media converter engineered for high reliability in demanding settings. Its primary purpose is to enable the straightforward integration of legacy twisted-pair equipment into a modern fiber optic network. This extends communication distances far beyond the limits of copper cabling, reduces susceptibility to electromagnetic interference, and ensures robust data conversion for critical industrial processes. The device's performance is rooted in a purpose-built set of industrial-focused features designed for maximum uptime and operational resilience.
Throughput: 148810pps
MAC Address Table: 2K
Packet Size: 1 Mbit
Switch Time Delay: < 10µsec
Backplane Bandwidth: 1G
MTBF: 445,156 hrs
Copper Port Details: Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Auto-tuning
Fiber Port Details: SC/ST interface (optional)
Multimode (50/62.5-125µm), Singlemode (9/125µm)
Distance (Multimode): 0 to 2 Km @ 1310nm
Distance (Singlemode): 2 to 20 Km @ 1310nm/1550nm (higher distances available)
Power Consumption: 1.0W (No Load), 1.5W (Full Load) @24V DC
Protection: Overload Protection, Reverse Polarity Protection
Weight: 350g

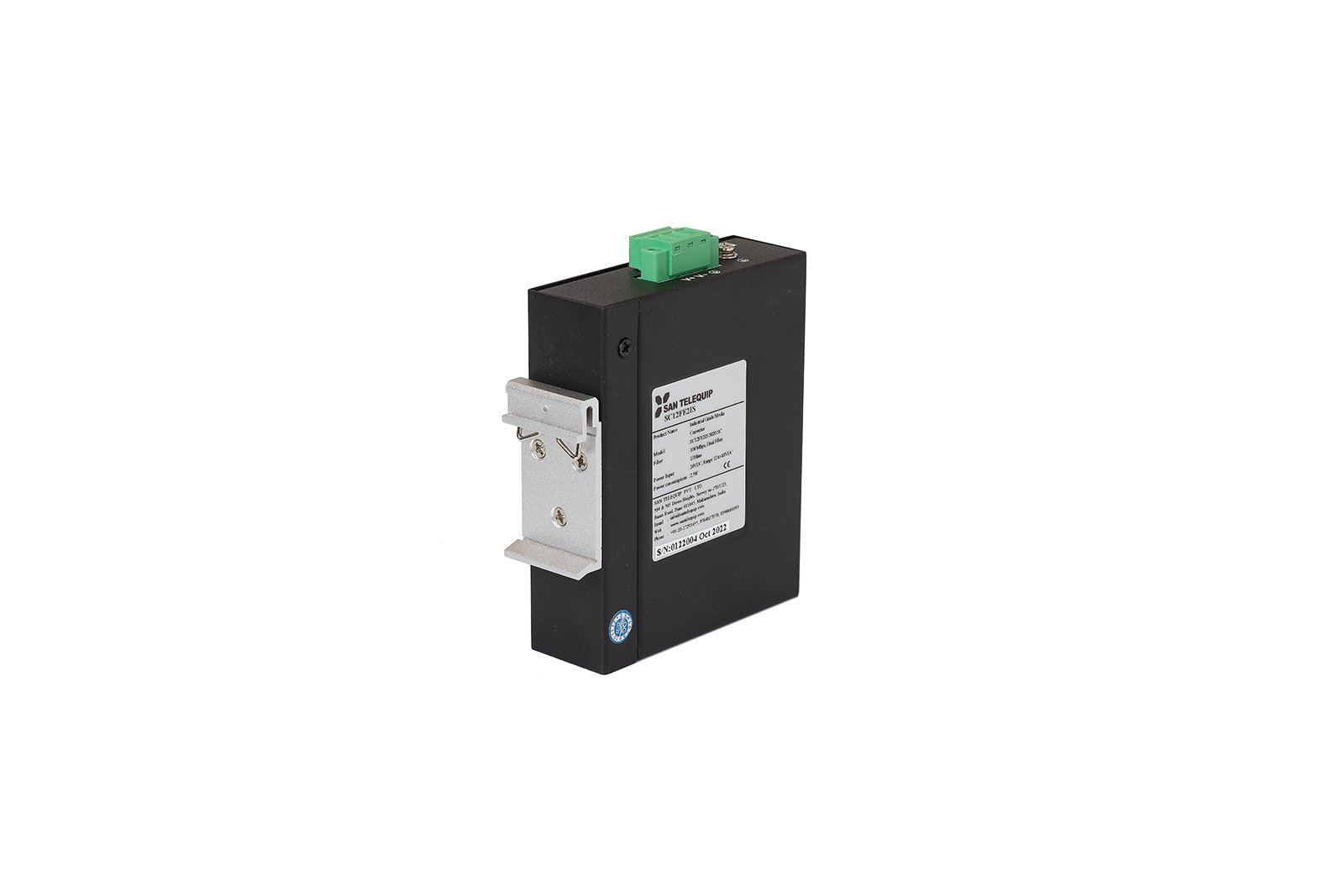

Mounting: DIN Rail
Ingress Protection: IP40
Storage Temperature: -40 to 85°C
Humidity: 5 to 95% (non-condensing)
| Categories | Single mode | Multi mode | ST Connectors | SC Connectors | AC Power Supply | DC Power Supply | Download |
|---|---|---|---|---|---|---|---|
| SC12FE2IS S020 SC TD | – | – | – | ||||
| SC12FE2IS S020 SC | – | – | – |
