Introduction

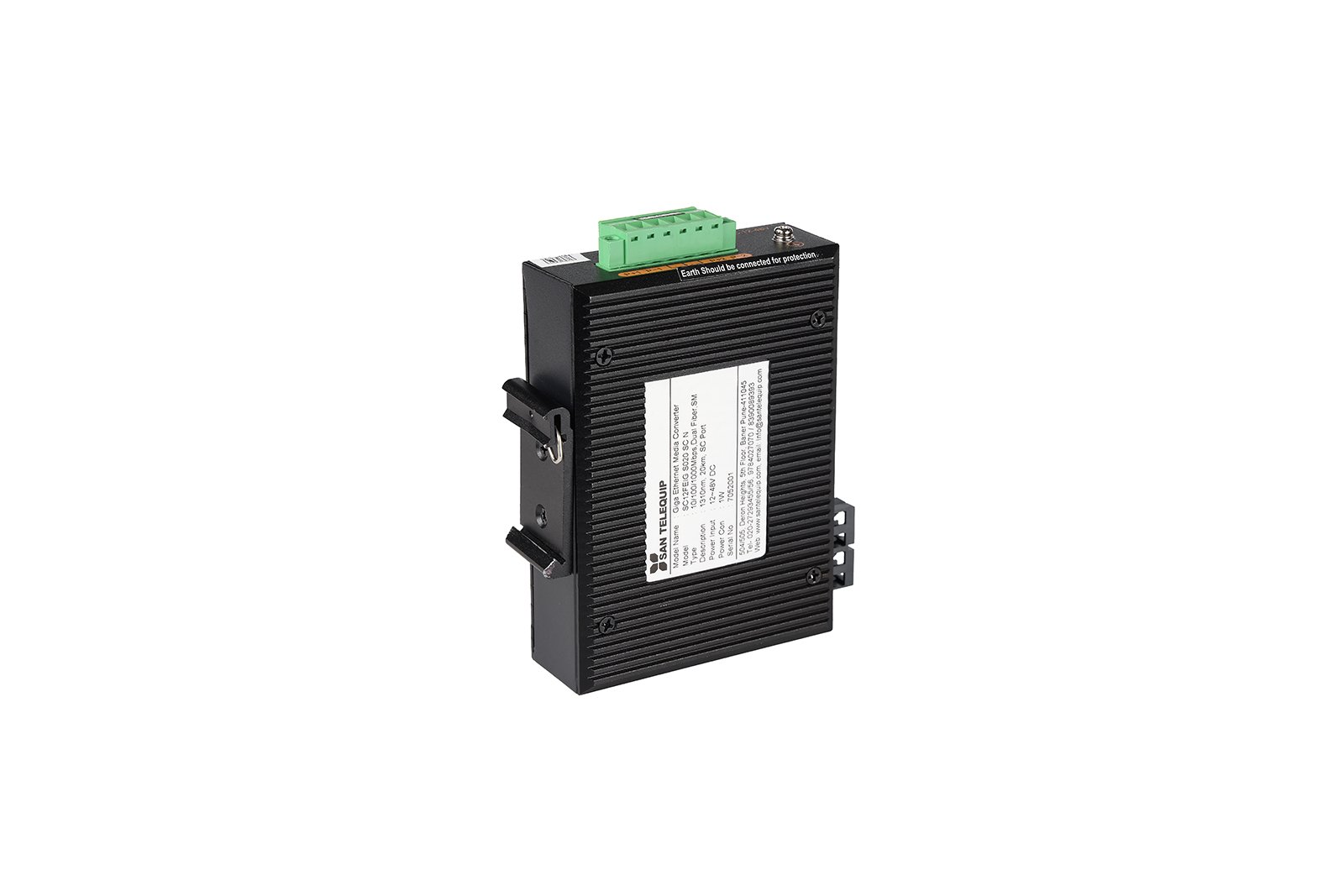

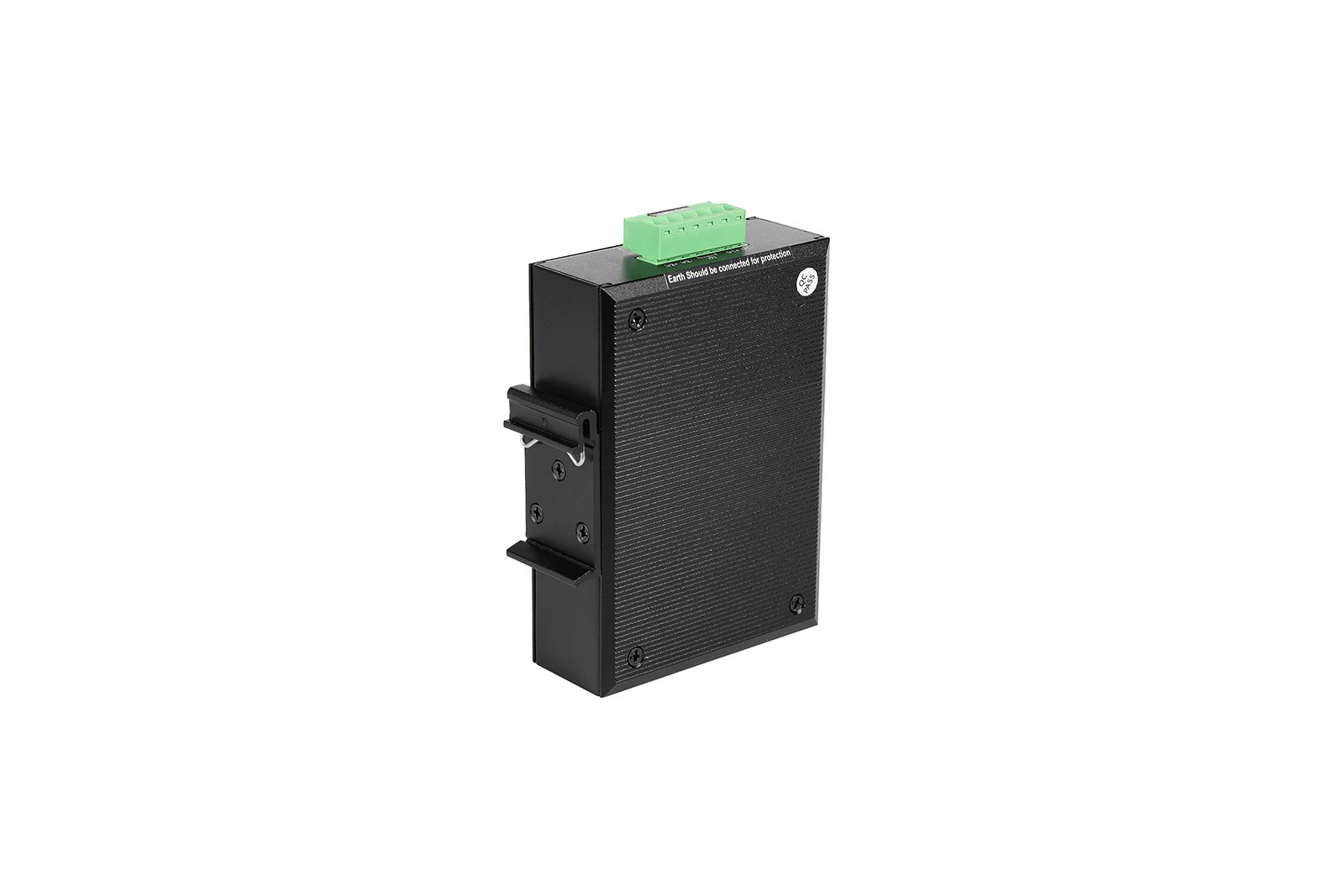

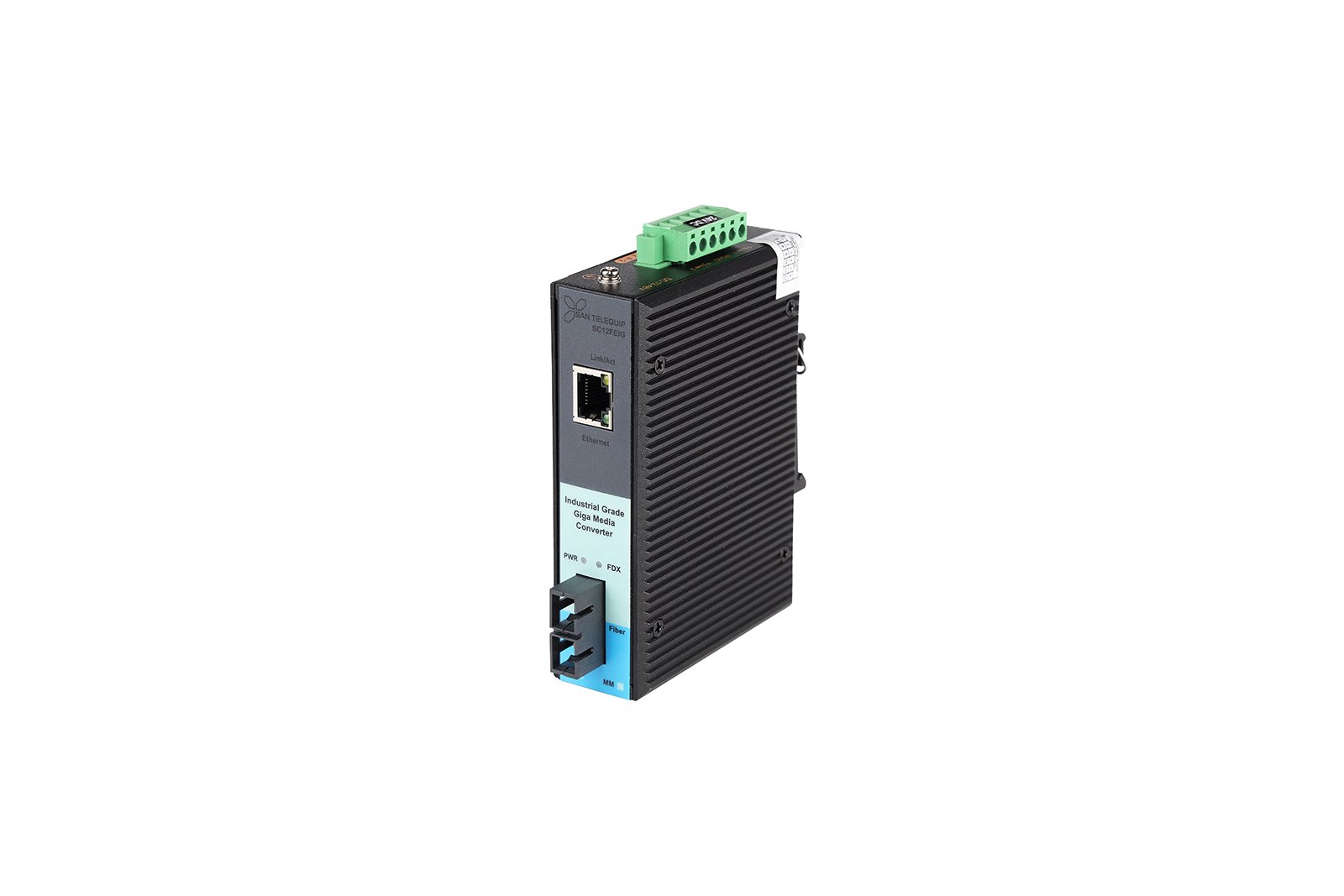

The SC12FEIG is an industrial-grade media converter designed to bridge 10/100/1000Mbps Ethernet with 1000Mbps fiber optic cabling. Its primary function is to extend network distances reliably over fiber in harsh and demanding environments. This capability makes it a strategic component for deploying robust and resilient networks in critical sectors such as intelligent transportation systems, power utilities, telecommunications, security surveillance, and water utilities.
Built upon a Store-and-Forward architecture, the SC12FEIG ensures data integrity during transmission. Its fanless and energy-saving design promotes long-term reliability and reduces operational costs. The device is engineered to comply with all relevant Ethernet standards and features built-in lightning and anti-static protection to safeguard against electrical disturbances. With a rugged construction and the ability to operate across a wide temperature range from -40°C to +85°C, the SC12FEIG N delivers stable and dependable performance where commercial-grade equipment would fail.
Packet Buffer Memory: 1M
Max Packet Size: 1518 bytes
Packet Forwarding Rate: 14880 pps (10Mbps), 148800 pps (100Mbps), 1488000 pps (1000Mbps)
MAC Address Table: 8K
Forwarding Delay: <4us
Forwarding Mode: Store-and-Forward
MTBF: 300,000 hours
1 x 1000Mbps Optical port (SC/SFP)
100BASE-TX: Cat5 or later UTP (≤100 meter)
Fiber (Multi-mode): 2KM
Fiber (Single-mode): 20/40/80KM
Power Redundancy: 2 x 12 to 48VDC (Dual Redundancy)
Working Consumption: <5W
Connectors: 6 Pin Screw type
terminal block
Protection: 6KV Lightning Protection
Installation: DIN-Rail or Wall mounts
Weight: 0.36KG
Dimensions (H×D×W): 118mm × 86mm × 39mm
Storage Temperature: -45 to +85°C
Relative Humidity: 5% to 95% (no condensation) MTBF: 357,000 hours
| Categories | Single mode | Multi mode | ST Connectors | SC Connectors | AC Power Supply | DC Power Supply | Download |
|---|---|---|---|---|---|---|---|
| SC12FEIG S020 SC N | – | – | – | ||||
| SC12FEIG S N | – | – | – | – | – | ||
| SC12FE2IG M SC A | – | – | – |
