Introduction

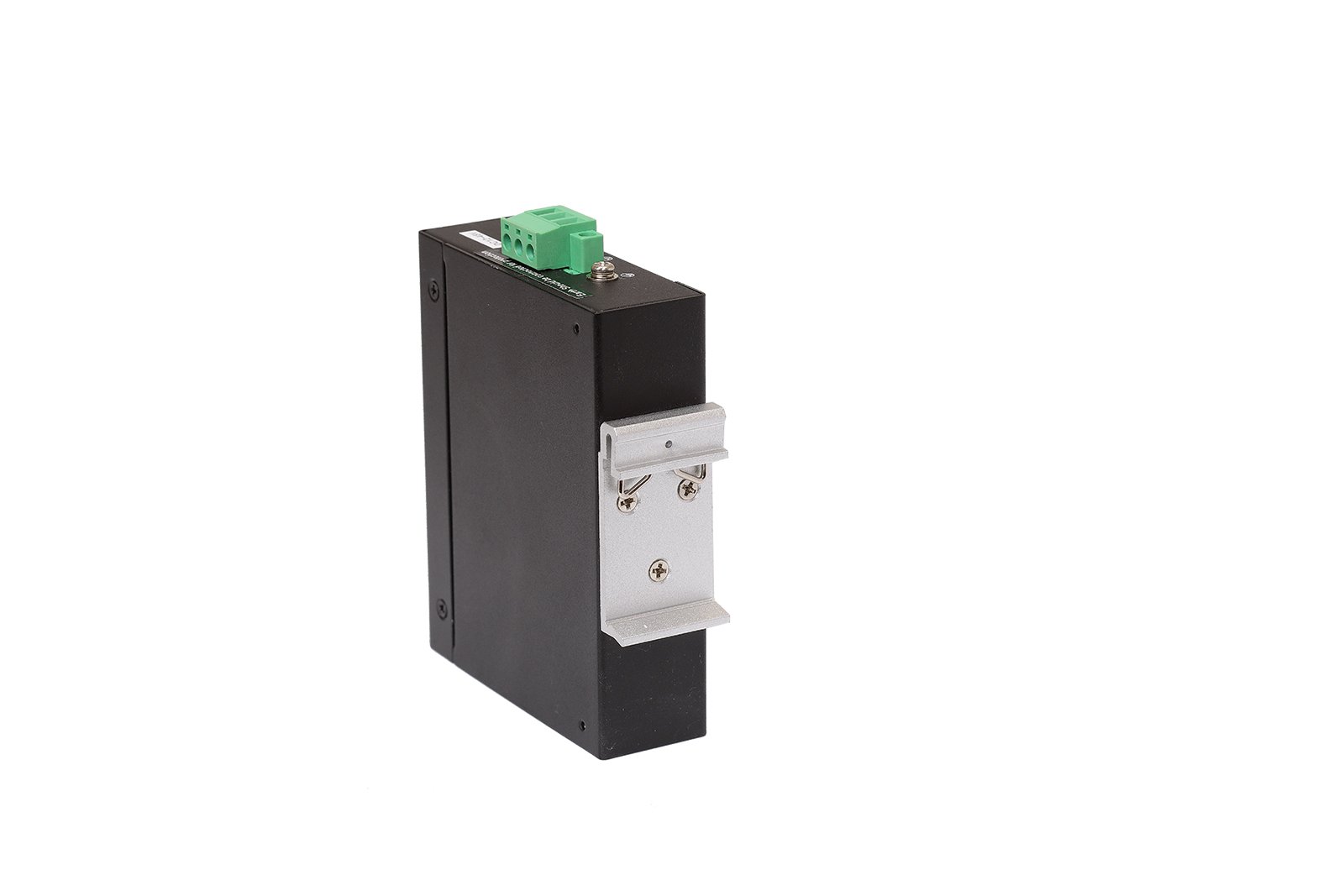

The SC12FEIS is an industrial-grade, unmanaged 10/100Base-TX to 100Base-FX standalone media converter. It is engineered to provide a simple yet powerful solution for converting Ethernet electrical signals to optical signals for transmission over fiber optic cable. With support for both multi-mode and single-mode fiber, the SC12FEIS offers the flexibility to adapt to a wide range of network topologies and distance requirements, automatically tailoring its operation to either half or full-duplex Ethernet signals based on network needs.
The core value proposition of the SC12FEIS lies in its ability to deliver a robust, trouble-free data conversion process that extends network reach and enhances data integrity in harsh industrial environments. By enabling the strategic use of fiber optics, it allows organizations to build resilient network backbones that are immune to electrical noise. This approach optimizes the total cost of ownership by providing a reliable, low-maintenance solution for connecting remote devices and mission-critical systems.
Buffer Memory: 288Kb
Backplane: 400Mbps
Delay: 12 μsec
Packet / Frame Size: 9K
Throughput: 148,810 pps
Connector: RJ45<
Isolation: 3KV Magnetic
Single Mode: Up to 120 km (model dependent, with various options available, e.g., 20km, 40km, 80km, 120km)
Input Voltage Range: 9 to 48V DC<
Current: 175 mA @ 24V
Power Connector: 3 Pin Terminal block
Power Consumption: 2.4 W
Reverse Polarity Protection: Yes
Overload Protection: Yes
Dimensions (W x H x D): 28 x 99 x 78 mm
Weight: 360g
Enclosure Rating: IP30
Storage Temperature: -55°C to 125°C
Relative Humidity: 5% to 95% (non-condensing)
MTBF: 357,000 hours
| Categories | Single mode | Multi mode | ST Connectors | SC Connectors | AC Power Supply | DC Power Supply | Download |
|---|---|---|---|---|---|---|---|
| SC12FEIS A S020 SC LFPT | – | – | – | – | |||
| SC12FEIS S020 SC | – | – | – | – | |||
| SC12FEIS M SC | – | – | – | – |
