Introduction

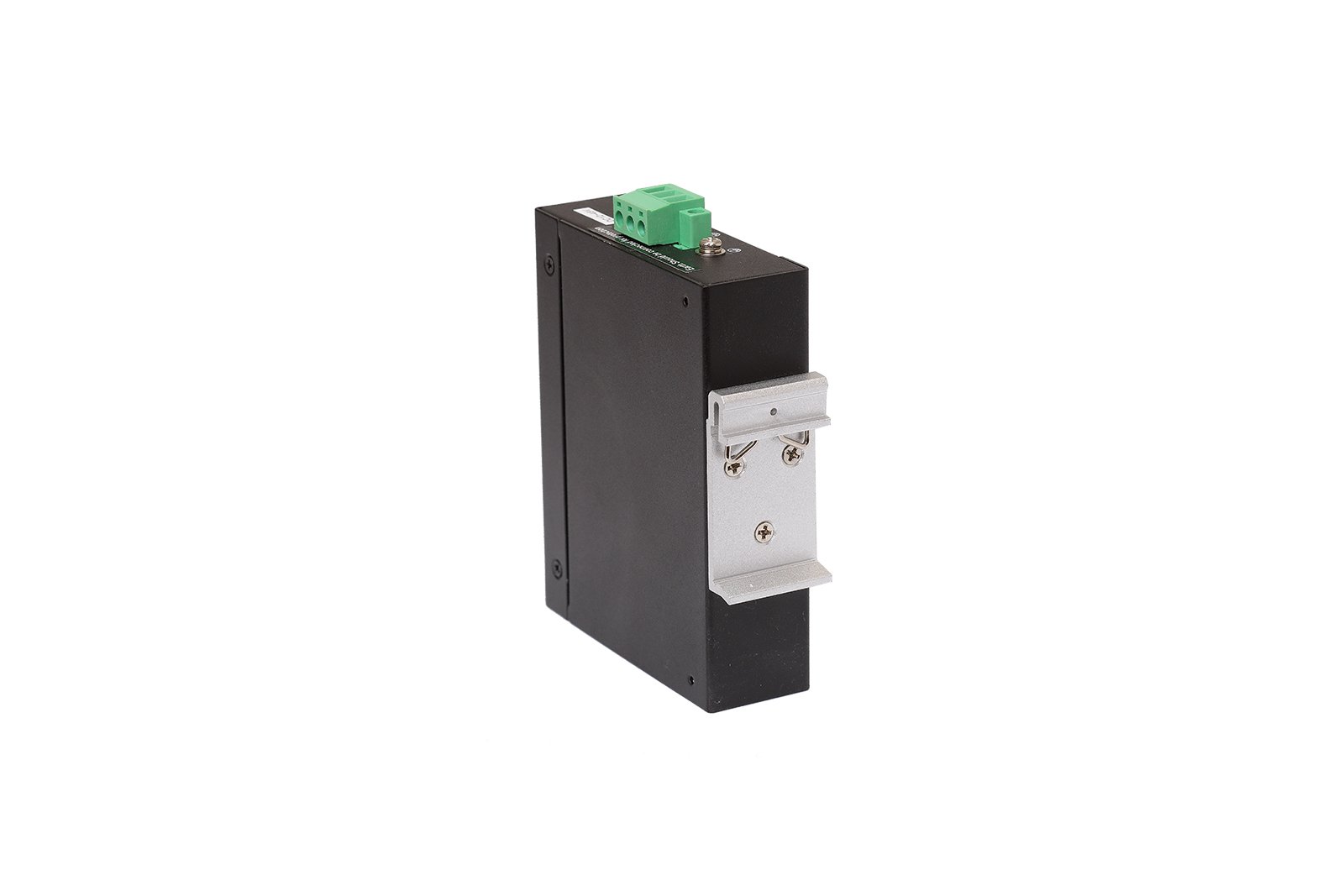

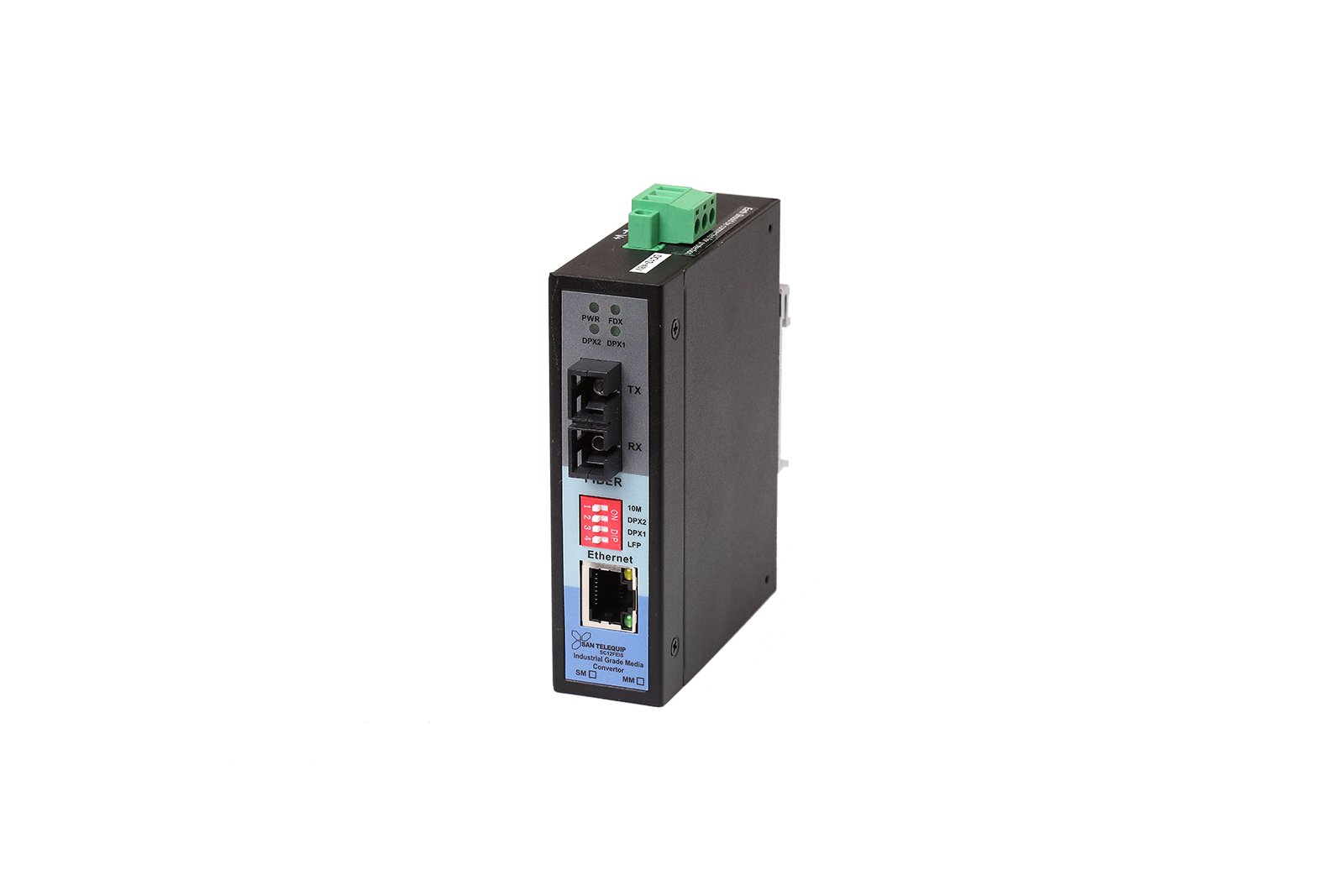

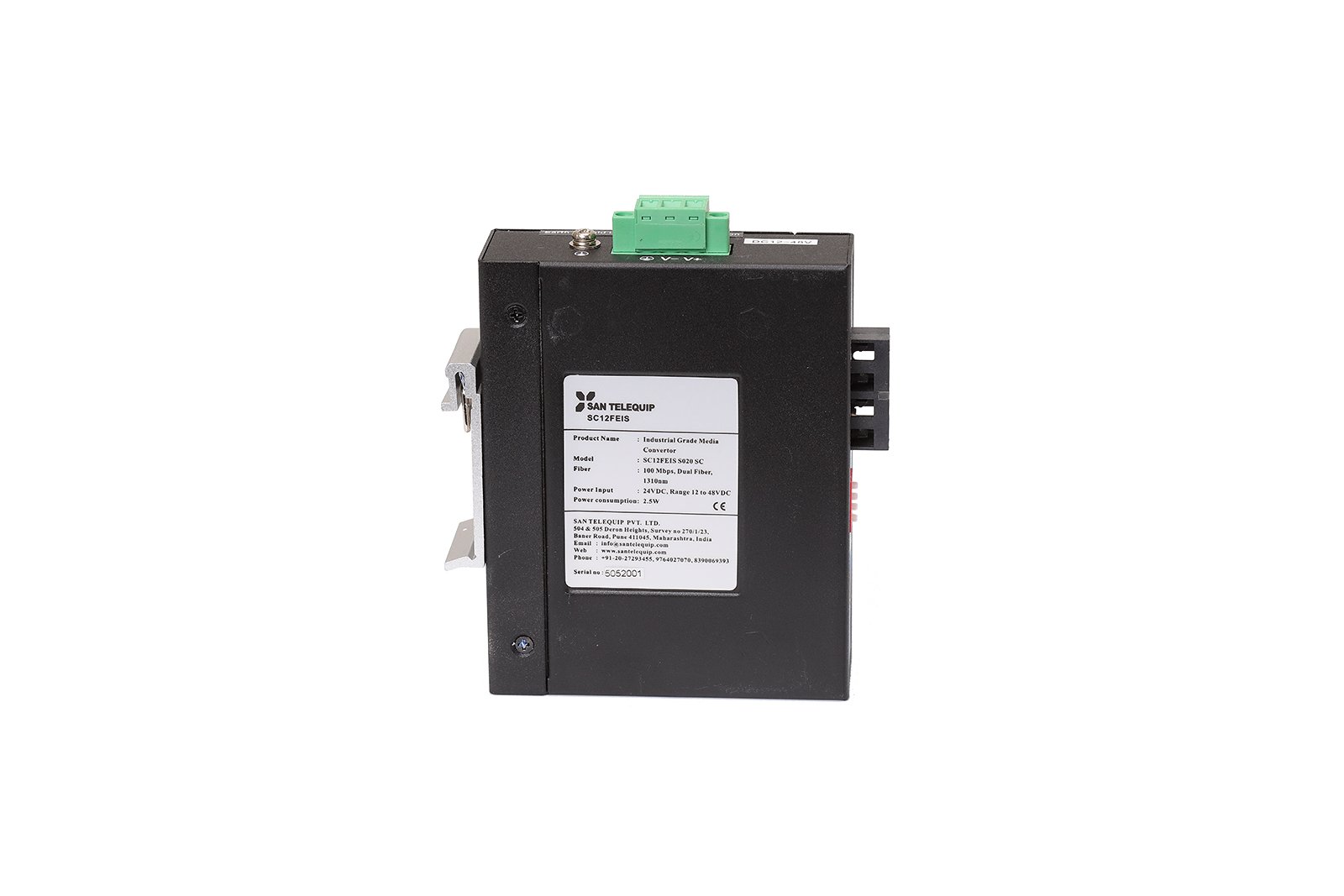

The SC12FPIAG series is an Industrial Power over Ethernet (PoE) Media Converter engineered to meet these demanding requirements. Its primary function is to convert network signals between 10/100/1000Base-TX copper and 1000Base-FX fiber optic cabling. Crucially, it simultaneously injects electrical power over the same twisted-pair copper cable, combining data and power transmission into a single, efficient solution. This capability eliminates the need for separate power sources for remote devices, simplifying installation and reducing infrastructure costs.

This integrated PoE functionality makes the SC12FPIAG an ideal solution for powering remote network devices such as IP phones, video surveillance cameras, and wireless access points in locations where power outlets are unavailable or impractical. Its full compliance with IEEE 802.3af/at standards ensures it can deliver up to 30W of power, accommodating a wide range of powered devices. Further enhancing its adaptability, the converter features an optional 1000X SFP fiber port, providing the flexibility to use various MSA-compliant SFP transceivers for diverse network architectures. The following sections detail the specific features that deliver these advanced capabilities.
