Introduction

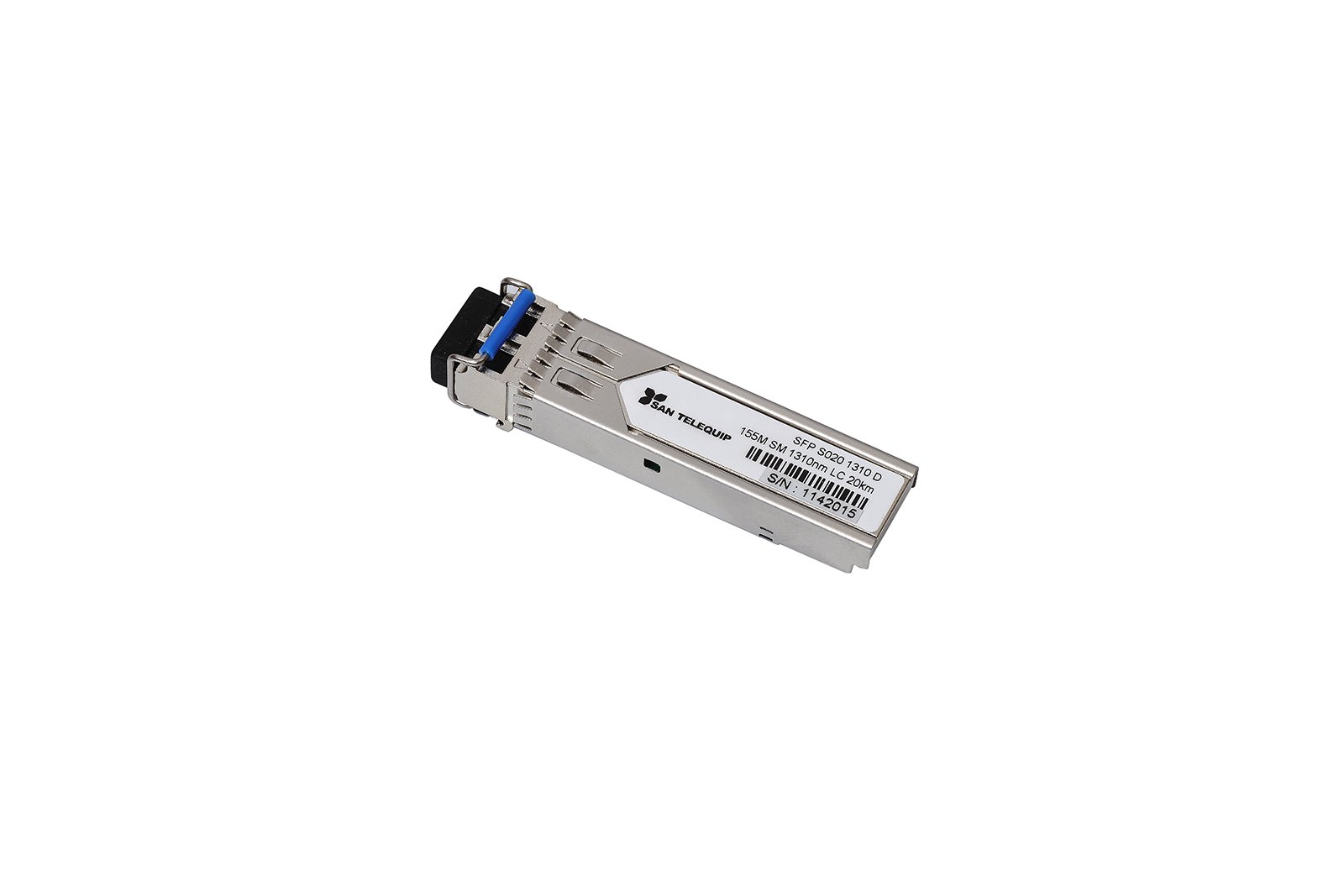

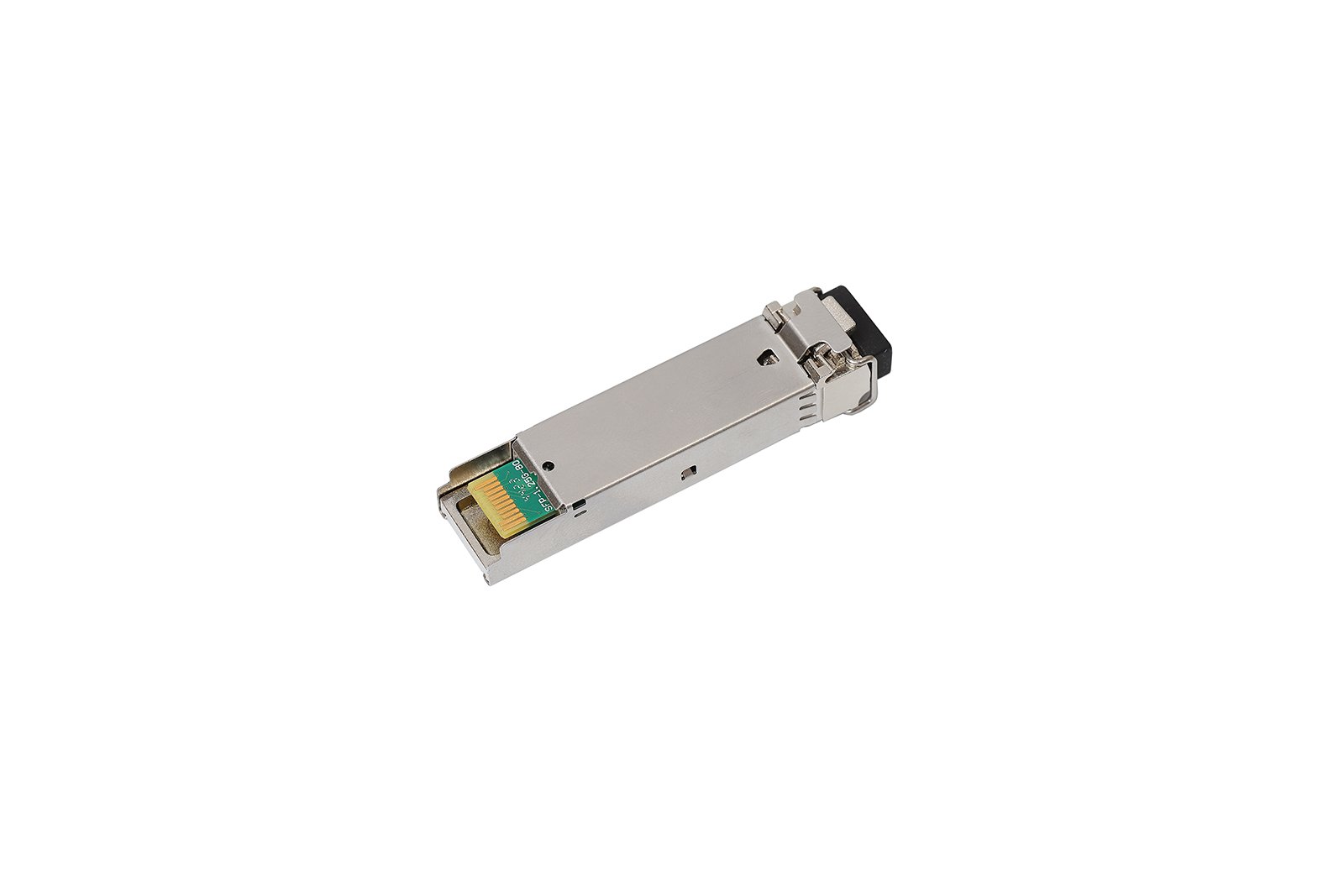

SFP transceiver is a high-performance, cost-effective module engineered to support data rates of 155 Mbps for transmission distances up to 20 kilometers over single-mode fiber (SMF). Designed with versatility and interoperability in mind, these transceivers are fully compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (SFP MSA), ensuring they can be deployed in a wide range of networking hardware from various manufacturers.
Adherence to modern environmental and safety standards is a core design principle. The modules are RoHS compliant and lead-free, meeting stringent international regulations. This combination of performance, compatibility, and compliance makes SFP a dependable solution for building and maintaining robust fiber optic networks. The transceiver's design incorporates a suite of high-value features that enhance its performance, reliability, and usability in diverse operational environments.
Immunity: IEC 61000-4-3
ESD: MIL-STD-883 Method 3015 (Electrical PINs), IEC 61000-4-2 (Duplex LC Receptacle)
Laser Safety: FDA 21CFR 1040.10 & 1040.11, EN60950, EN (IEC) 60825-1,2
RoHS: Compliant with 2002/95/EC 4.1 & 4.2, 2005/747/EC
Class 1 Laser Safety
Transmitter Power (Tx): -15 to -8 dBm
Receiver Sensitivity (Rx): -28 dBm
Receiver Overload: -8 dBm
Optical Extinction Ratio: 10 dB
Wavelength: 1261nm (Min), 1310nm (Typ), 1360nm (Max)
Low Power Dissipation: < 800mW
Enclosure: Metal for lower EMI
Dimensions: 56.60mm x 13.70mm x 12.40mm
Extended Operating Temperature (Casing): -40°C to 85°C
Storage Temperature: -40°C to 85°C
Operating Humidity: 5% to 95% (non-condensing)
