Introduction

Electronic serial interfaces operating in industrial environments are inherently vulnerable to damage from transient electrical events. Sources of these disturbances are common and varied, ranging from electrostatic discharge (ESD) and "hot-plugging" of charged cables to the high-energy surges induced by nearby lightning strikes. Implementing robust, specialized protection is a strategic necessity to ensure the reliability and uptime of critical communication systems.

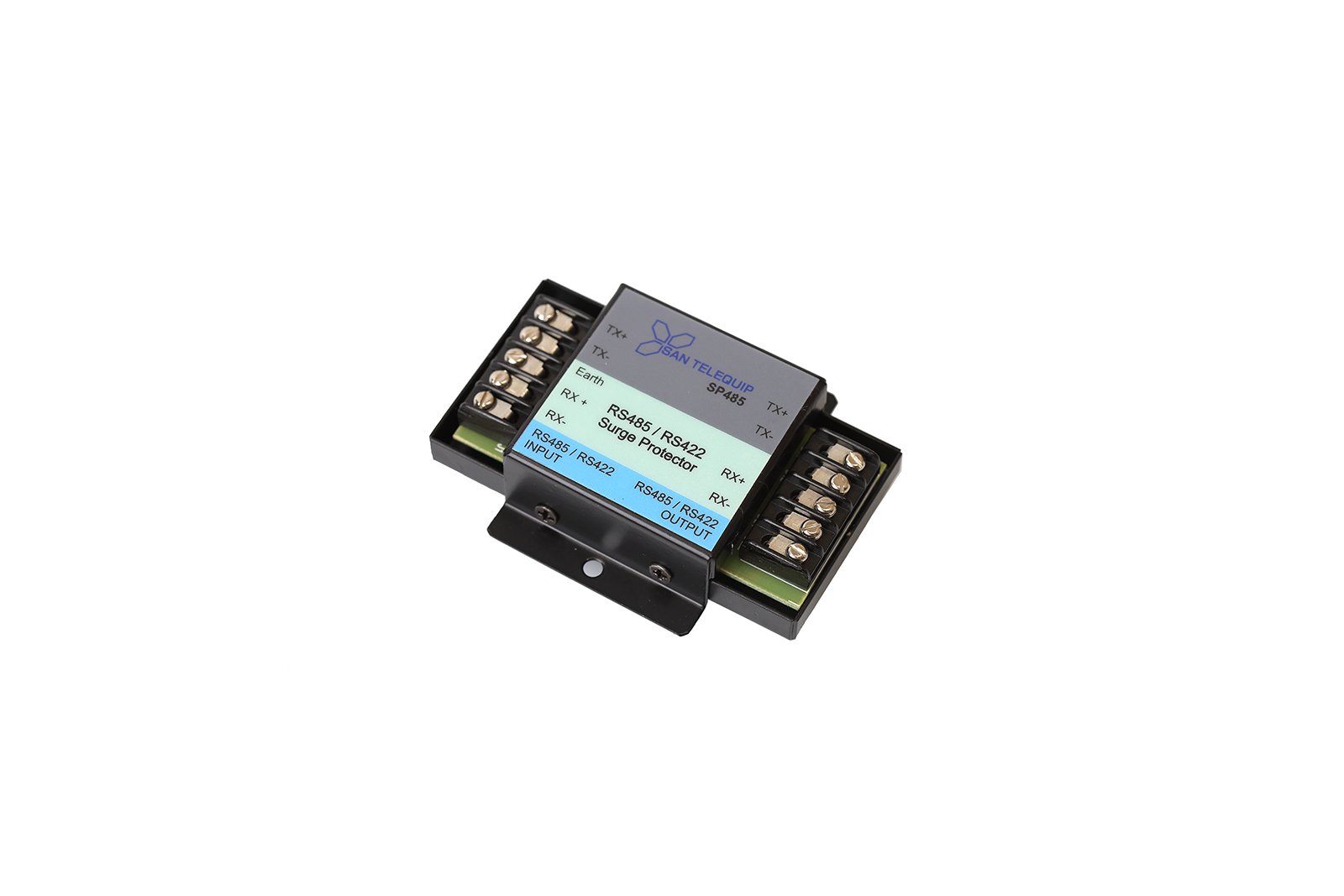

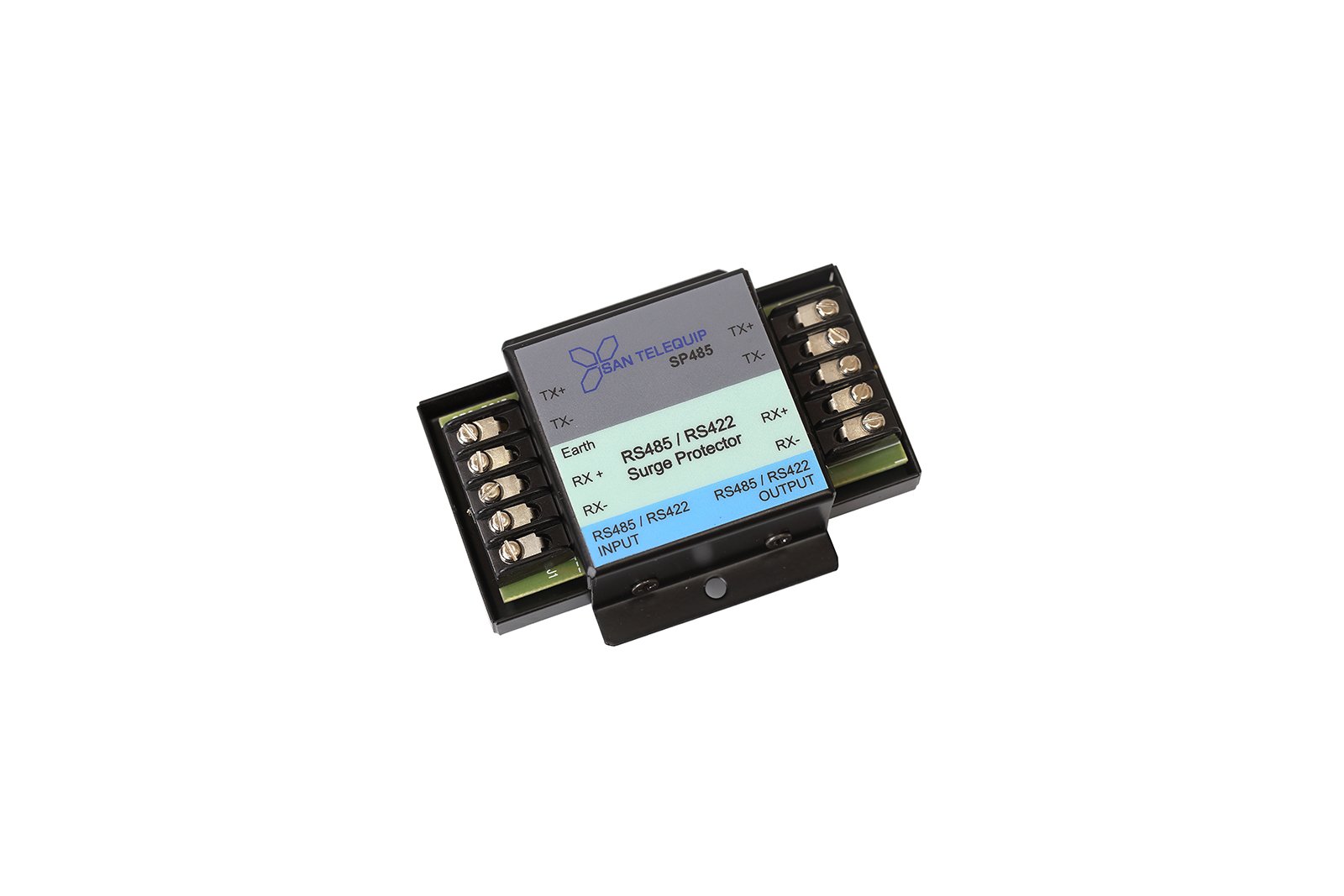

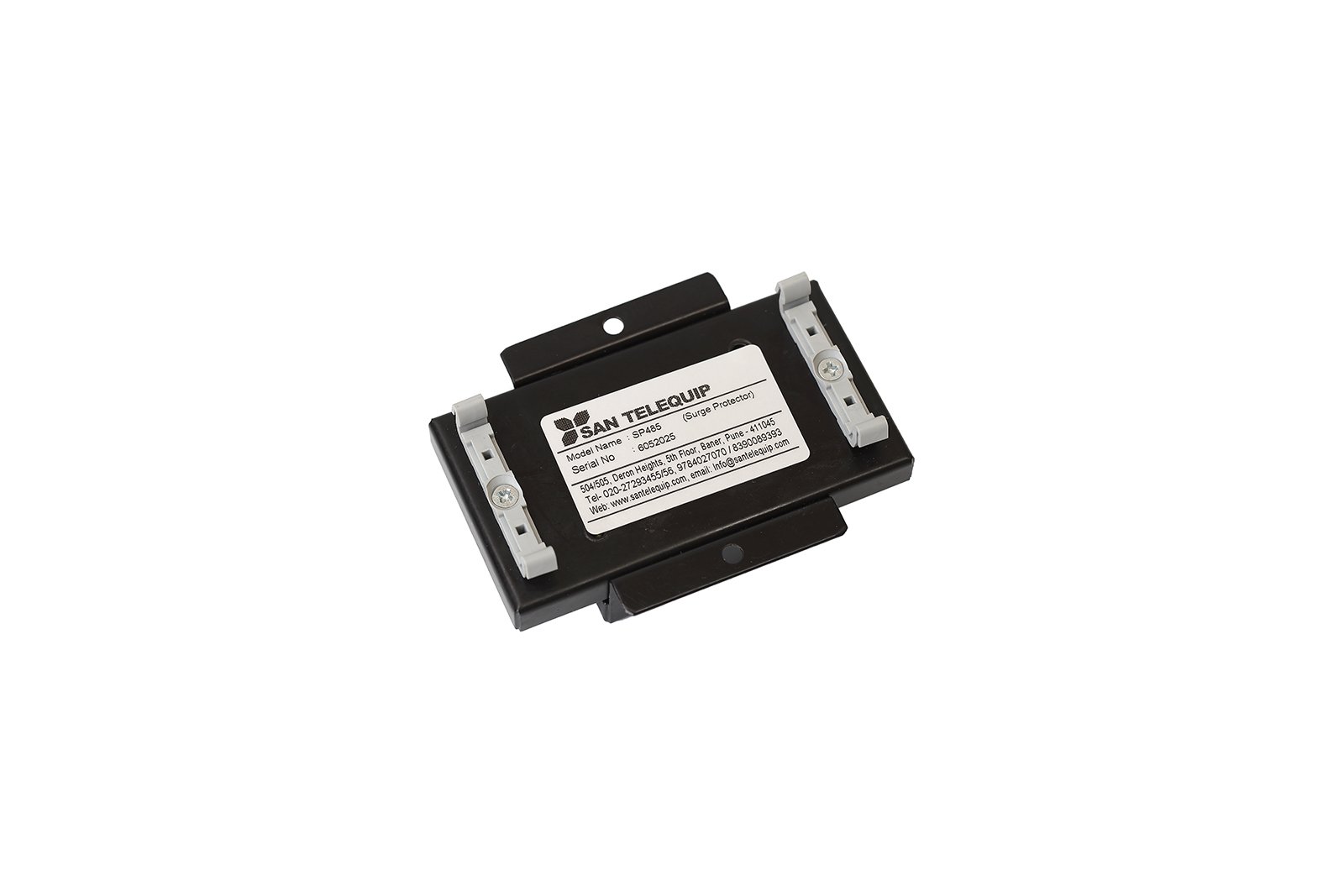

The SP485 is a dedicated surge protection device engineered to safeguard RS485 and RS422 serial ports from the damaging effects of such transient events. It provides a crucial defensive barrier for sensitive electronic equipment against threats including ESD, lightning, and power surges. The device employs a multi-faceted protection methodology that combines current limitation, precise voltage clamping, grounding, and high-energy surge arresting to create a well-balanced and highly effective defense.

This passive, in-line protector is an ideal solution for applications involving long cable runs that pass through electrically noisy areas or are susceptible to lightning-induced transients. By neutralizing these threats at the interface, the SP485 helps prevent equipment failure, costly downtime, and data corruption.
