Introduction

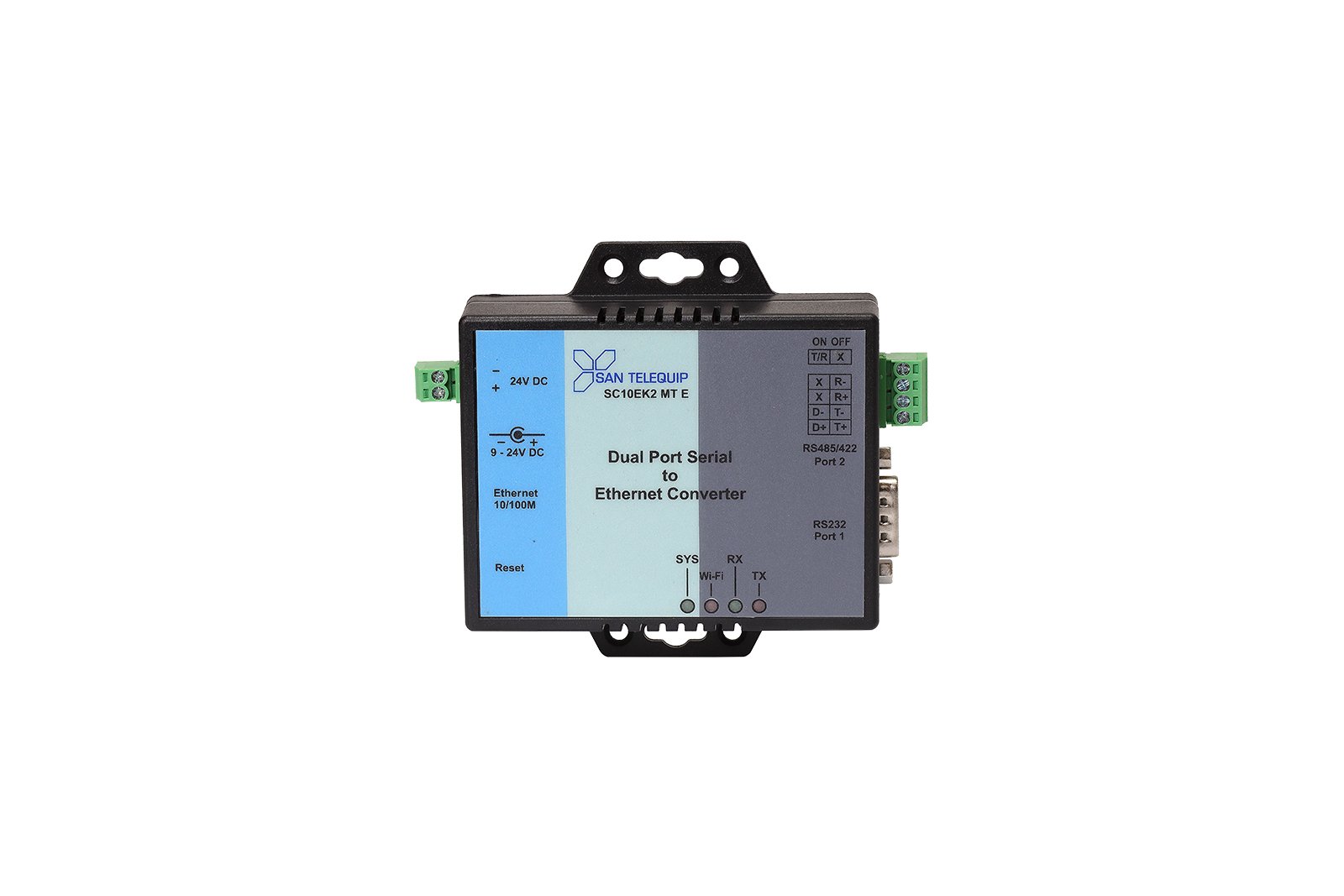

The SC10EK2 MT E is a compact, high-performance serial to Ethernet converter engineered for applications requiring reliable network integration for a smaller number of serial devices. This model delivers the processing power and industrial-grade features of larger units within a space-efficient form factor, making it an ideal choice for targeted deployments.
Functioning as a 2-port serial to Ethernet solution, the SC10EK2 MT E provides connectivity for one RS232 device and one RS485/422 device. It is built upon a powerful internal architecture—sharing the same 580 MHz MIPS CPU and OpenWrt Linux OS as the industrial-grade SC10E4IK—ensuring robust performance and advanced configuration capabilities. This combination of power and a compact footprint makes it perfectly suited for space-conscious industrial control cabinets, remote monitoring stations, and embedded systems where efficiency and reliability are key.
RAM: 128M Bytes DDR2 RAM
ROM: 32M Bytes Flash ROM
OS: OpenWrt Linux OS
Serial Speed: 300 bps to 921.6 Kbps
Serial: 1 x RS232 (DB9 Male), 1 x RS485/422 (4 Pin Screw Terminal)
Protection: 1.5KV Magnetic Isolation (Ethernet), 15KV ESD (All Signals), Surge Protection (RS422/485)
Weight: 110 gm
Housing: Plastic
Storage Temp: -25⁰C to 80⁰C
| Categories | Single mode | Multi mode | ST Connectors | SC Connectors | AC Power Supply | DC Power Supply | Download |
|---|---|---|---|---|---|---|---|
| SC10EK2 MT E A 230 I | – | – | – | – | – | ||
| SC10EK2 MT E D 48I | – | – | – | – | – |
